ST02 Double Glazing Glass Two Component Extruder Machine
US$ 6,000 - 8,000
/ Set
1 Set(Min. Order)
- qingdao port China
- T/T Credit Card
You May Like
Product Details
| Brand Name | SUNNY, SUNNY | Place of Origin | Shandong, China | |
| Model Number | ST03, ST02A | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 18 months | |
| Weight | 350kgs | Dimension(L*W*H) | 1100 x 950 x 1630mm | |
| Condition | New | |||
Product Description

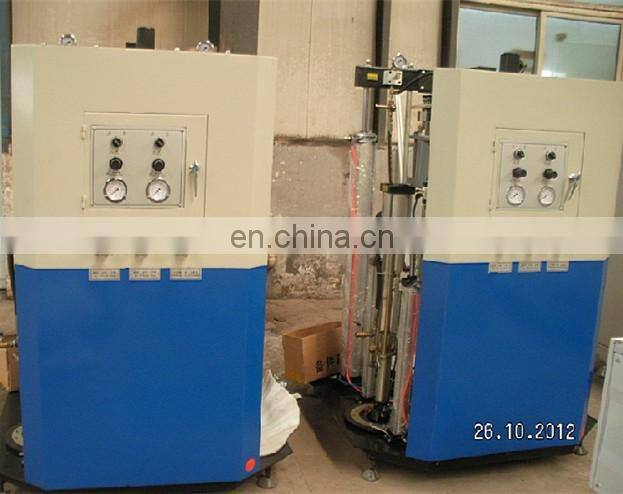

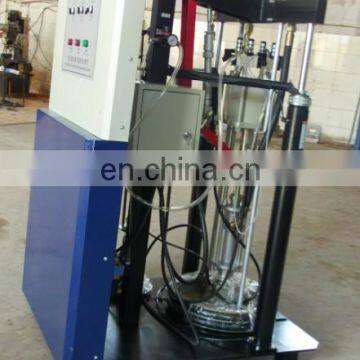

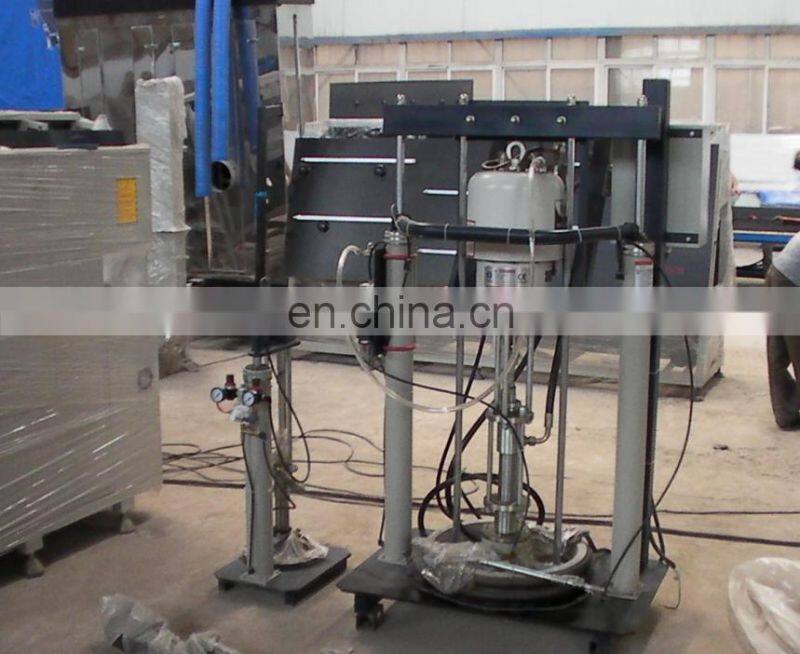

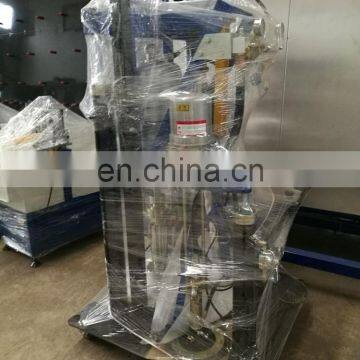

hollow glass Machine---ST02A Pneumaitc Two Component Extruder Machine
Contact person: Awen Yin
contact mobile number: 0086 150 6334 3341
Wechat: awenyin
ST03 Korean Pneumatic Silicone Extruder /Two Component Sealant Extruder Machine
KOREAN SINGLE/TWO COMPONENT SEALANT EXTRUDER MACHINE
1.Summarize:
Two Component extruder Machine is the best machine which is aborbing the most excellent technology in the world.It is used on the seal connection of the hollow glass,wall glass and the others.A and B component glue pump are used hydraulic system and air driving system individual.They are controlled by the without contacting point electrical controlling system,the switch is very sensitive and reliable.Its uniques,convenient and adjustable proportion installation can assure the strictly proportion demand of the double component glues in the utmost possibility.The out-glue is equality,good effect and high efficiency.
2.Functions and Features:
1.It is composed of raw material pump,solidification pharmaceutical pump,proportional pump, sealant-mixture system,hydraulic pressure system,electric system and so on.
2.Raw material pump,solidification pharmaceutical pump and proportional pump adopt the special high-pressure filling pump and the materials can be supported equivalently in two-way.The raw material pump is compelled by the hydraulic pressure sysem while the solidification pharmaceutical pump is compelled by the pheumatic motor.
3.There are high-pressure valves in the underpart entrance of solidification
1.It is composed of raw material pump,solidification pharmaceutical pump,proportional pump, sealant-mixture system,hydraulic pressure system,electric system and so on.
2.Raw material pump,solidification pharmaceutical pump and proportional pump adopt the special high-pressure filling pump and the materials can be supported equivalently in two-way.The raw material pump is compelled by the hydraulic pressure sysem while the solidification pharmaceutical pump is compelled by the pheumatic motor.
3.There are high-pressure valves in the underpart entrance of solidification
pharmaceutitcal filter and material-feeding place of the mixing device and one-way valve is set in the mixing device so as to prevent two-components from fleeing each other.
4.Rising and falling system is controlled by hand valve and the proportion of the two-components can be changed by adjusting the slipper in the swinging pole.Tighening the nut once the demanding scale is reached.
4.Rising and falling system is controlled by hand valve and the proportion of the two-components can be changed by adjusting the slipper in the swinging pole.Tighening the nut once the demanding scale is reached.
3.Technical Parameter:
Mix ratio | 6:1~14:1 changeable |
Pump A platen diameter | 55 gallon(200L) φ565mm |
Pump B platen diameter | 5 gallon (20L) φ285mm |
Max. air consumption | 1.2 CBM/min |
Max. extruding pressure | 19Mpa |
The pressure ration for glue and air | 50:1 |
Air supply | 0.5~0.8Mpa |
Voltage | 220V, 50Hz |
Overall dimensions | 1100 x 950 x 1630mm |
4.Company Name: JINAN SUNNY MACHINERY CO.,LTD.
ADD.: zone 2,Yaoshan Industrial Park,Tianqiao,Area,Jinan,Shandong,China
Contact Person: awen (export manager)
mob:86-15063343341
Welcome to enquire us!
Main Products:
- insulating glass productin line
- horizontal /Vertical Glass Washing &Drying machine
- Sealant Extruder machine (butyl extruder,silicone extruder ,polysulfide extruder )
- Glass Cutting Process Line (including glass loading&unloading table,glass cutting table and glass breaking table)
- Aluminum &pvc windows and doors machine (such as cutting saw,pvc welding machine,corner cleaning machine,crimping machine,etc.)
Warmly welcome to contact us if any of our products are fo interest to you.
Contact person: Awen Yin
Mob:86-15063343341
Wechat: awenyin
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 monthes, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly english manual for machine using and maintaining.
