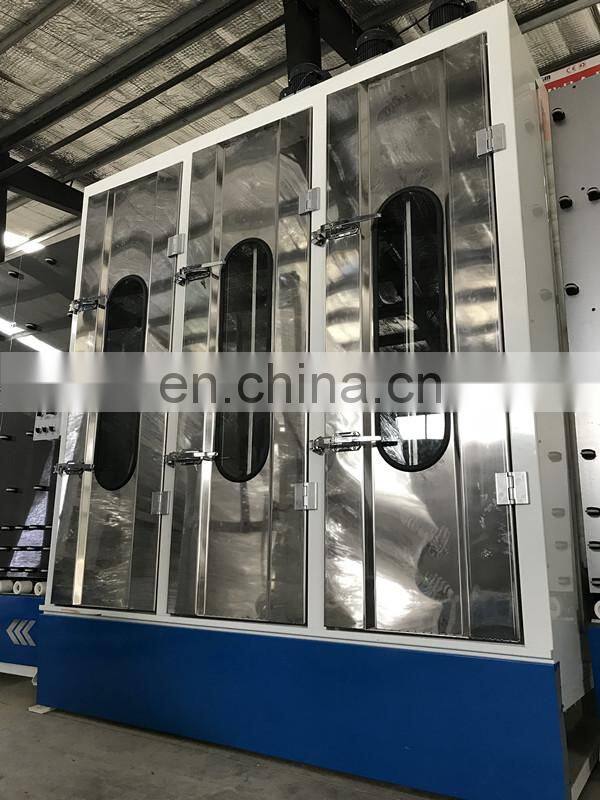

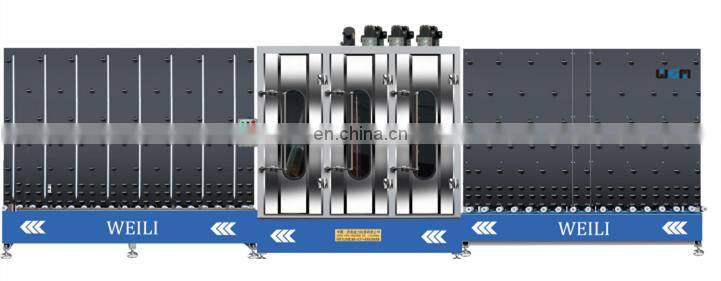

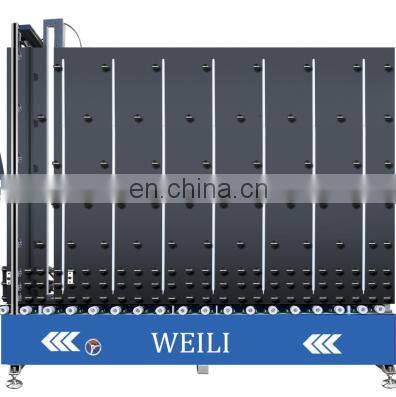

Jinan factory 2000mm automatic vertical insulating glass washing and drying Machine

This machine can be divided into three parts: feeding section, washing and drying section, light inspection section.

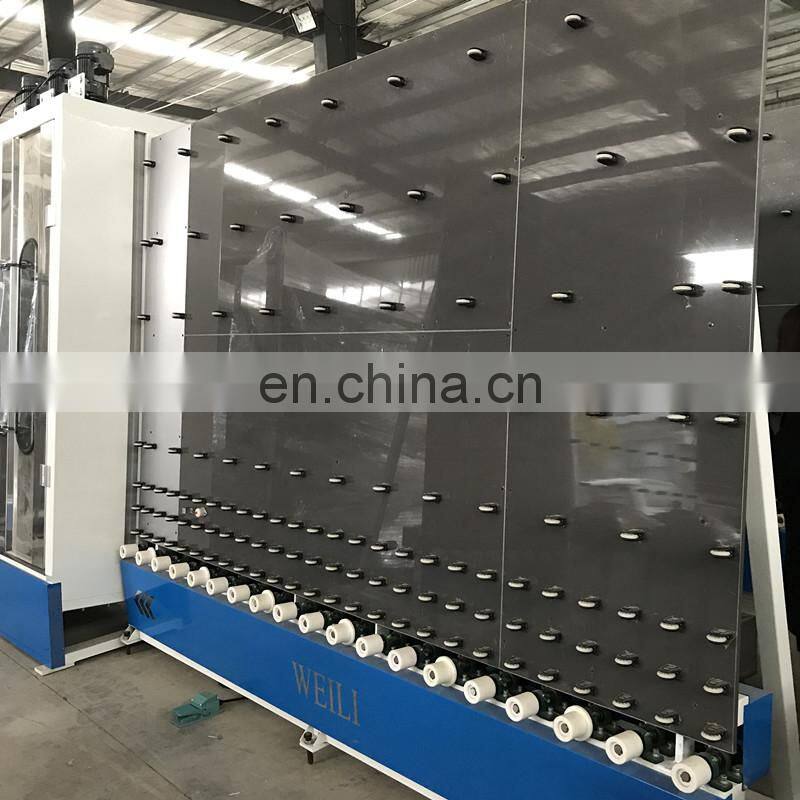

Feeding section

There is a coating identifying system and alarm system, when the coating side is placed wrongly, the transmission will stop automatically and the system will give an alarm. On the contrary, the glass will go without barrier.

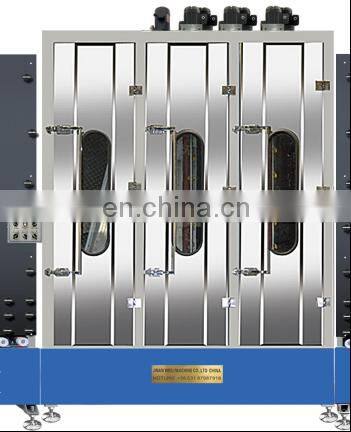

Washing and drying section

 Washing part
This part has three pairs of brushes (the material is high -temperature nylon wire ) and a pair of sponge roller. The brushes are driven by three synchronous motors separately and the movement is stable. Three pairs of tubular rollers type of hair brushes, use High Temperature Resistant and soft nature hair brush, fully guaranteed the coating glass especially the LOW-E glass layer stratification can't be destroyed.

a. Install 6 motors. from one motor with one pair brush to one motor one brush.it can last the usage life of the washing and drying section.
b. It adopts custom-made and imported nylon, front is three pairs of soft brushes(Φ0.08mm), back is three pairs of hard brushes(φ0.10mm),it last the brushes life.

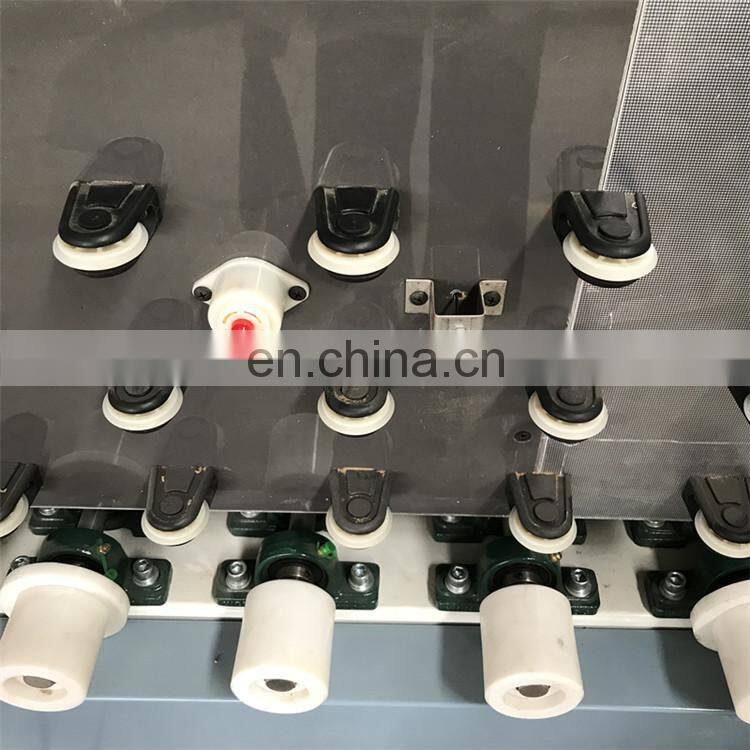

c. According to the glass thickness, automatically controll the spacing of the drag roller, it doesn't need any
other manual adjustment for the glass that have different thickness in the adjustable scope by bearings.Bearing is SKF from Sweden can automatically adjust space of drag roller according to glass thickness.

d. The washing and drying section adopts stepped frequency conversion governor, which make the glass run at the appropriate speed stably.

e. Four levels of cleans, guarantee the best clean effect. The clean section uses the high quality stainless steel completely; the part, which may contact with water, uses the stainless steel or the copper nature material.

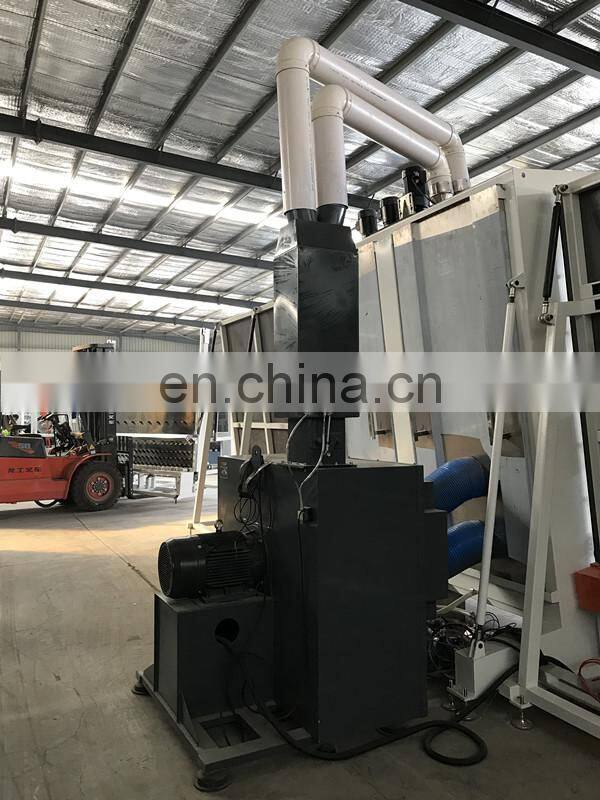

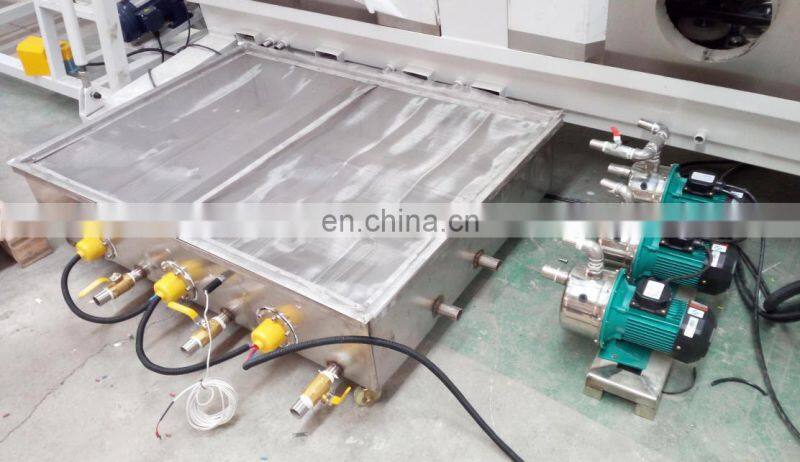

Drying part
The air enters into the air knife from the top. The distance between the air knife and the glass should be adjusted according to the thickness of the glass in order to guarantee the drying effect. Air passage adopts the most advanced design and increase the drying speed and productivity.

a.There is a pair of rhombic air knife, the front air knife can adjust backward or forward according the glass thickness. The blower, which is equipped with heater, blows strong hot wind; also it is equipped with infrared heater that can dry the both sides of the glass quickly.

b.The dry section uses the high quality stainless steel, all of them are anti-corrosive material (including air knife, transfer gantry), the two air knives relative surfaces gradient can adjust basis on the glass thickness in the structure, the first wind knife automatic control and adjust the distance to the glass surface, it can be used to clean glass that of different thickness, fully consistently guaranteed the distance between the gusty and the glass surface, the inside of the air knife can be cleaned.

c. Uses the two-stage high pressure air blower, the wind power is strong, the wind that enters into the air knife will be filtrated, so can guaranteed the purity of the air, the half circulation hot blast can guarantee the dry effect, the high efficiency air blower can guarantee the glass can be completely pure drying.

d. The outlet of the wind machine is equipped with a wind flow regulating valve. When the light inspection stops work, the wind outlet will close automatically, avoiding the contamination caused to the glass because of long time blowing. In the air blower and the blade carrier installs air noise reduce and absorption material, the movement noise is lower than 75 decibels.

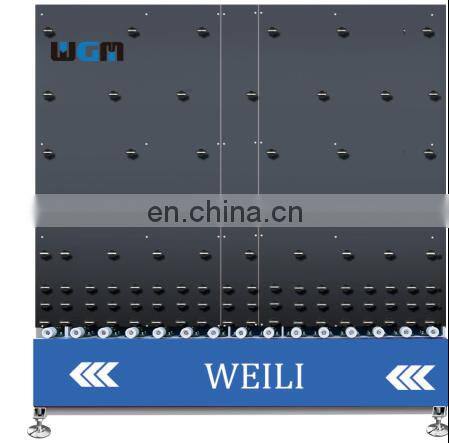

Light inspection section

This section is used to check washing quality and guarantee product quality. And the black color is compared to the glass panels, so it is very easy to check washing quality.
