WL2000-31 Insulating Glass Automatic Sealing Robot Double Glazing Machine Line

The Introduction of System

 This system is a set of automatic sealing system for double glazing/triple glazing insulating glass.

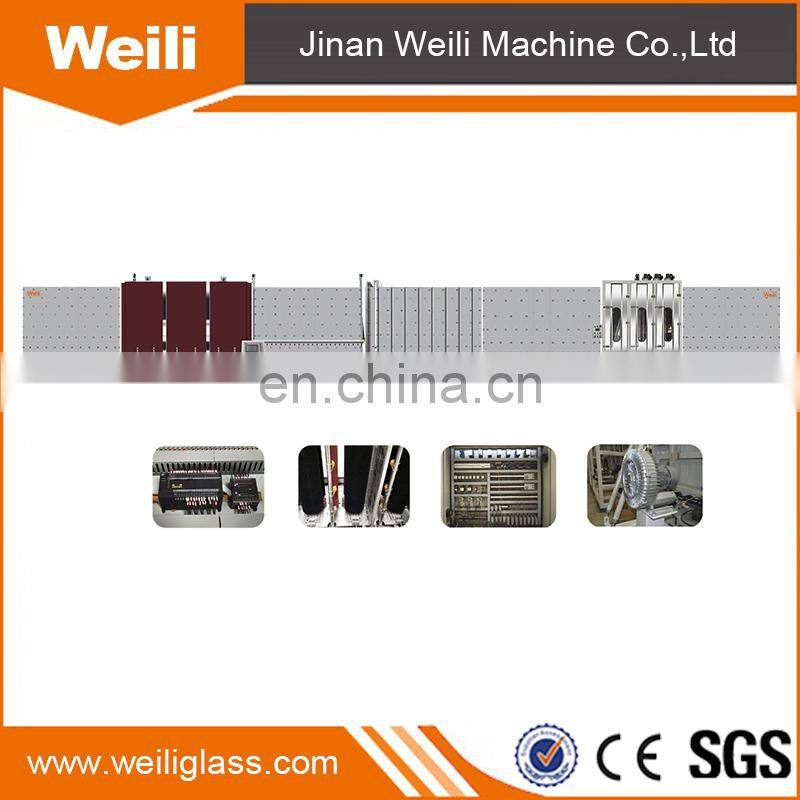

The system can be sealed for different size of the hollow glass processing. The system is shown in the figure below

Functions

 Friendly man-machine interface is concise users will be more convenient to operate.

 Touch screen

This system has the thickness detection device and depth detection device by the high resolution sensors.

Combined with automatically sealing function and  adjusting the volume of the glue, it can greatly improve the efficiency of production.

This system is equipped with a clamping device, which can insure the glass to move more securely in the process of transmitting and gluing.

The system has two sets of sealing system(optional), to change glue easily during production.

This system can be used in triple glazing glass. Firstly,it glues for the first space,when it finishes,the rubber head will adjust the angle for gluing the second space.

The V belt can adjust automatically according to the thickness of glass.

Rubber head pressure device can adjust glue head moving cylinder pressure through the precision of electric proportional valve to make the glue head attach

the glass more smoothly

 glue head

The structure of centering rubber head can adjust the rubber head according to the thickness of glass to ensure the effect of the gluing.

plywood pallet and plastic film

 Installation: If the buyer needs, the seller will send one or two technicians (one is electrical engineer, one is mechanical engineer) to install the machines and help train the workers.

Warranty time: Usually one year. It is negotiable.

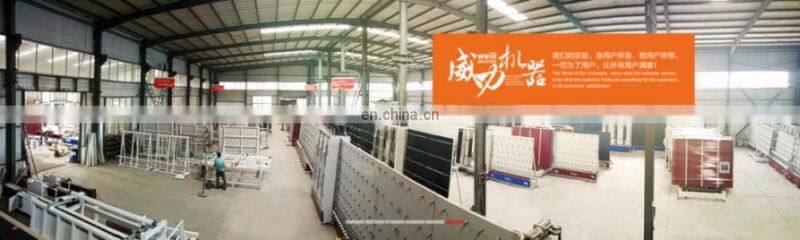

Jinan Weili Machine Co.,Ltd is in the service of construction glass and glass industries. It is mainly specialized in producing door-window of energy conservation insulated glass production line of curtain wall, and glass deep-processing equipment.

Based on the operating mode:”Professional, Meticulous, High, Top” ,our company has grown up to the leader of equipment line. It makes effort to create respected brand name by all glass industries.

Constantly making innovations, Capturing high technology, prompting the total level of industry, then to make Chinese mature and high technology insulating glass equipment for international, and accepted by international users. That is the Weili people working’s goal and responsibility

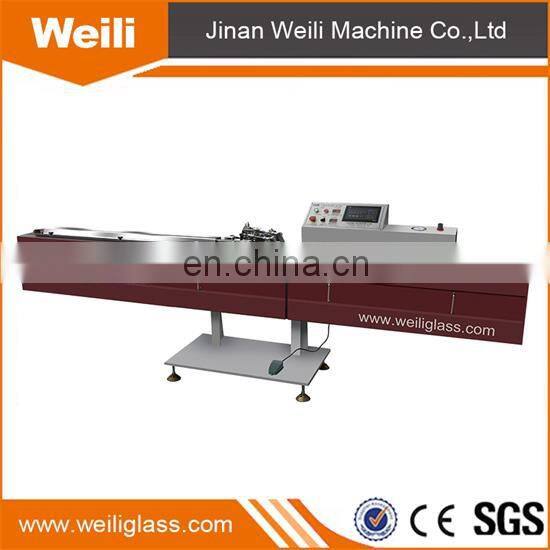

Insulating glass gas filling production line            Insulating glass butyl extruder machine
