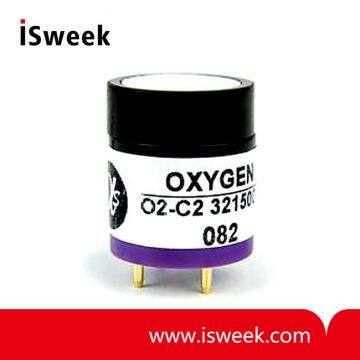

O2-C2 Electrochemical Oxygen Sensor (O2 Sensor)
US$ 30 - 100
/ Piece
1 Piece(Min. Order)
- HK
- T/T PayPal
- 7 days
You May Like
-
NH3-B1 Electrochemical Ammonia Sensor (NH3 Sensor)
-
FPI-HS/HE EED/HERO Fiber Optic Signal Conditioner
-
ULPSM-O3 968-005 Ultra-Low Power Analog Ozone (O3) Sensor Module
-
SG01M-A18 UVA-only SiC Based UV Photodiode A = 0.20 mm2
-
IRt/c.10 Infrared Temperature Sensors
-
MB1260 XL-MaxSonar-EZL0 High Performance Ultrasonic Rangefinder
Product Details
| Brand Name | Alphasense | Place of Origin | United Kingdom | |
| Model Number | O2-C2 | Usage | Gas Sensor | |
| Theory | Other, Electrochemical Gas Sensor | Output | Analog Sensor |
Product Description
O2-C2 Oxygen Sensor (O2 Sensor) Description
Alphasense Oxygen sensors use capillary flow control.
Unlike partial pressure oxygen sensors, they have good pressure and temperature dependence, making them the best choice in safety applications.
Standard galavanic sensors use lead for greatest reliability but fixed lifetime.
O2-C2 Oxygen Sensor size:
20mm diameter, extra height allows additional filter material when measuring combustion gases
| O2-C2 Oxygen Sensor (O2 Sensor) PERFORMANCE | ||
| Output | μA @ 20.9% O2 | 80 to 120 |
| Response time | t90 (s) from 20.9% to 0% O2 | <50 |
| Zero current | μA in N2 | <2.5 |
| Linearity | % O2 deviation @ 10% O2 | -0.6 |
| O2-C2 Oxygen Sensor (O2 Sensor) LIFETIME | ||
| Output drift | % change in output @ 3 months | <1 |
| Operating life | months until 85% original output of 20.9% O2 | > 24 |
| O2-C2 Oxygen Sensor (O2 Sensor) ENVIRONMENTAL | ||
| Humidity sensitivity | % O2 change: 0% to 95% rh @ 40℃ | <0.7 |
| CO2 sensitivity | (% change O2 reading) / % CO2 @ 5% CO2 | 0.1 |
| Pressure sensitivity | (% change of output)/(% change of pressure) @ 20kPa | <0.1 |
| O2-C2 Oxygen Sensor (O2 Sensor) KEY SPECIFICATIONS | ||
| Temperature range | ℃ | -30 to 55 |
| Pressure range | kPa | 80 to 120 |
| Humidity range | % rh continuous (0 to 99% rh short term) | 5 to 95 |
| Storage period | months @ 3 to 20℃ (store in sealed pot, open circuit) | 6 |
| Load resistor | Ω (recommended) | 47 to 100 |
| Weight | g | <18 |
