SZL 10 Ton Coal Fired Steam Boiler

FOB Price

US$ 120000 - 200000 / Ton

1 Ton(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yuanda Boiler	Place of Origin	China
Model Number	SZL10-1.25-AII	Certification	ISO
Type	Natural Circulation	After-sales Service Provided	Engineers available to service machinery overseas
Weight	50 TON	Dimension(LWH)	11X3.5X5 M
Condition	New	Style	Horizontal
Fuel	Coal-fired	Usage	Industrial
Output	Steam	Structure	Water Tube
Pressure	Low Pressure

10 Ton Coal Fired Steam Boiler price

Features of 10 ton coal fired steam boiler:

(1)DZL type is Single drum water pipe assembly chain grate boiler arrangement

(2)The automatic feed fuel system make it easier to offer fuel to the furnace.

(3) using a large furnace,improve the effciency of the combustion.

(4) complete control functions, security and stability,run more securely.

(5)The convection bank improve the heat transfer efficiency.

Technical datasheet of 10 ton coal fired steam boiler:

Item	Unit	Number
Rated capacity	Ton	10
Rated working pressure	Mpa	1.25
Feed water temperature	°C	104
Steam temperature	°C	194
Active grate area	m2	11.9
Convection heating surface	m2	231.4
Radiation heating surface	m2	38.42
Economizer heating surface	m2	159.96
Flue gas temperature	°C	168.75
Designed efficiency	%	79.7
Coal consumption	Kg /hr	1375 (5000kcal/kg)
Fuel style	Coal Biomass ,or other solid fuel
Upper part weight	Ton	33.5
Bottom part weight	Ton	18.2
Installation size	Mm	1100035005400(LWH)
Delivery style	Assemble boiler( two parts)

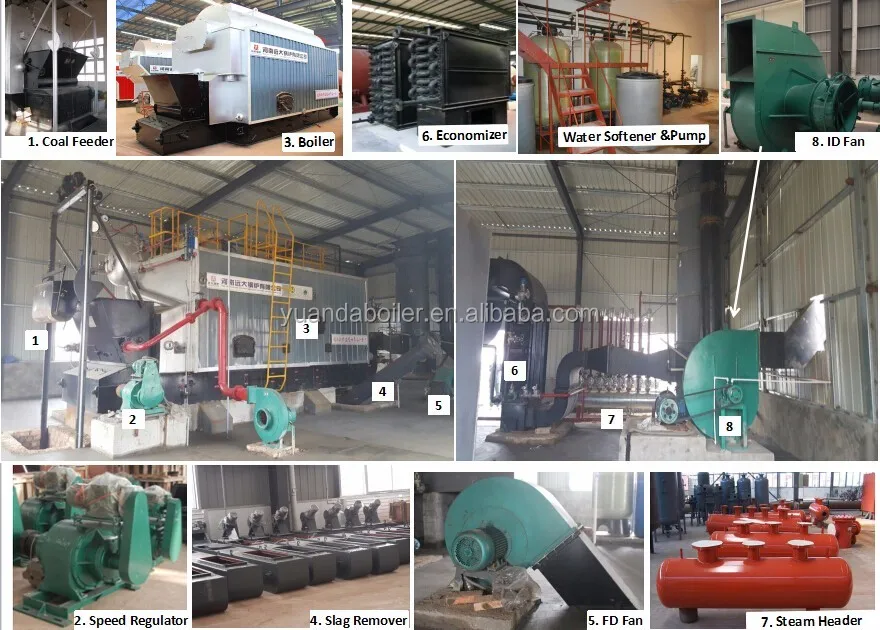

Boiler auxiliaries of 10ton coal fired steam boiler:
