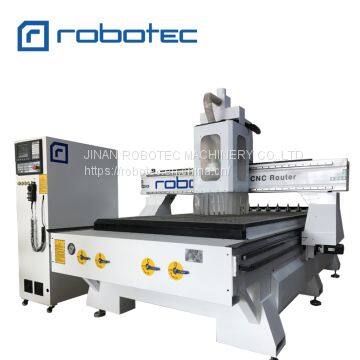

Auto tool change wood cnc router 1325 ATC cnc router machine 4 axis
- 100 Set / Sets per Month
- qingdao
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 10 days
You May Like
-
USB Mach3 CNC 1325 4 Axis 3Kw CNC Router Wood Carving Machine Woodworking Milling Engraving Machine CNC Engraver
-
Heavy Duty 3D Wood CNC Machine 4x8 Feet CNC Milling Machine With Rotary 4 Axis CNC Engraving Machine ATC Spindle CNC Router
-
Double Heads 90W Laser Engraving Machine 1300*900mm 150W CO2 Laser Cutting Machine 110V/220V Metal Laser Cutter
Product Details
| Brand Name | ROBOTEC | Place of Origin | China | |
| Model Number | 25H | Certification | CE ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 2 years | |
| Weight | 1800KGS | Dimension(L*W*H) | 1300*2500*200mm | |
| Voltage | 220V | Condition | New | |
| Power(W) | 9kw | CNC or Not | CNC |
Product Description
Model | RTM-1325H wood cnc machine |
Working area (X*Y*Z) | 1300*2500*200mm |
Table size | 1750*3050*1740mm |
Body structure | Thicken steel made |
X, Y Structure | Rack and pinion |
rails | Taiwan 25 size hiwin square rails |
Z Structure | Taiwan TBI ball screw |
X, Y Resolution | <0.01mm |
Max Moving Speed | 60000mm/min |
Max Engraving Speed | 30000mm/min |
X,Y,Z traveling positioning accuracy | ±0.01mm |
X,Y,Z repositioning accuracy | ±0.01mm |
Spindle power | 3.0kw water cooling spindle |
Spindle Speed | 0-24,000rpm |
Voltage | 380v/3phase or as customer needed |
Drive type | Big servo motors and drivers |
Working Dictate | G Code |
Operating system | Syntec/Mach3/Ncstudio/DSP/LNC |
Tool sensor | Yes |
Auto oil lubricator | Yes,included |
Wire protect | Yes,included |
Running Environment | Temperature: 0℃~45℃ |
package | Export wooden box |
After packed size | 3300*2200*1900mm |
G.W | 1800kgs |
>>Standard Configuration:
1) Integrated control system: Popular and easy operation, with USB port to transfer program;
2) Italian HSD Air-cooling Spindle: Long working life, easy maintenance;
3) Big Servo Driving Moto: With highly control precision and high speed, reliable and stable;
4) Taiwan Hiwin Guide and Block: Guaranteed genuine rail with good quality, realizing smooth movement;
5) Taiwan TBI ball screw: linear motion with high precision and and in high speed
6) Helical rack and pinion: quiet running, greater accuracy, smoother cutting and allows greater acceleration and feeding rates, longer lifetime because of smaller wearing force.
7) Taiwan Delta Inverter: Guarantee the variety working speed and protect the spindle very well;
>>Applicable Material: Acrylics,Wood, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
>>Applicable Industry: Woodworking industry, stone industry, advertising industry, artwork or decoration industry, electronica industry, mold industry and music industry etc.
