Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | QZ-1A | Type | Core Drilling Rig | |
| Certification | ISO | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | one year | Weight | 80 | |
| Dimension(L*W*H) | 600*450*1900 | Power Type | Diesel | |
| Voltage | 220 | Usage | Coal | |
| Condition | New | Power(W) | 1.5 |
Product Description

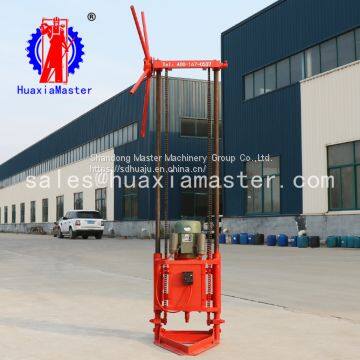

1.The brief introduction of QZ-1A type two phase electric sampling drill
QZ-1A type electric two-phase sampling drilling rig is a kind of portable multi-purpose micro engineering drill produced by Shandong Master Machinery Group Co.,Ltd, it is suitable for industrial and civil buildings, bridges, railways, roads, utilities and other sectors of the geophysical prospecting hole guiding, advanced drilling and grouting holes, embedded hole guiding, broken hole, hole, check out the small home with wells.
2.The technical parameter of QZ-1A two phase electric sampling drill
QZ-1A two phase electric sampling drill | |
Borehole diameter (mm) | 32-46 |
Borehole depth（m） | layer 20-25m/rock1 5-20m |
Drill pipe diameter (mm) | 25 |
Speed（r/min） | 175 |
Torque（n.m） | 80 |
Two phase electromotor (kw） | 1.5 |
Shape size（l*w*h） | 600*450*1900 |
Drill weight（kg） | 80 |
3.The packing list of QZ-1A two phase electric sampling drill
Name | Model | Unit | Quantity |
Two phase electric sampling drill | QZ-1A | platform | 1 |
Drill pipe | φ25*1500 | root | 6 |
Drill pipe | φ25*800 | root | 8 |
Lock the hand | φ32 | pcs | 14 |
Core tube | φ32*800 | root | 1 |
Alloy bit | φ32 | pcs | 1 |
Head | φ45/32 | pcs | 1 |
Core tube | φ45*800 | root | 1 |
Alloy bit | φ46 | pcs | 1 |
Scavenging bit | φ60 | pcs | 1 |
Plate fork | hold | 1 | |
Water seal type | Y 30*45*8 | pcs | 4 |
Driving wheel | platform | 1 |
