Ce Certificate 2.2 Kw / 4.0 Kw Industrial Fruit Juice Extractor

Wooden Packing As Export Standard

Description:

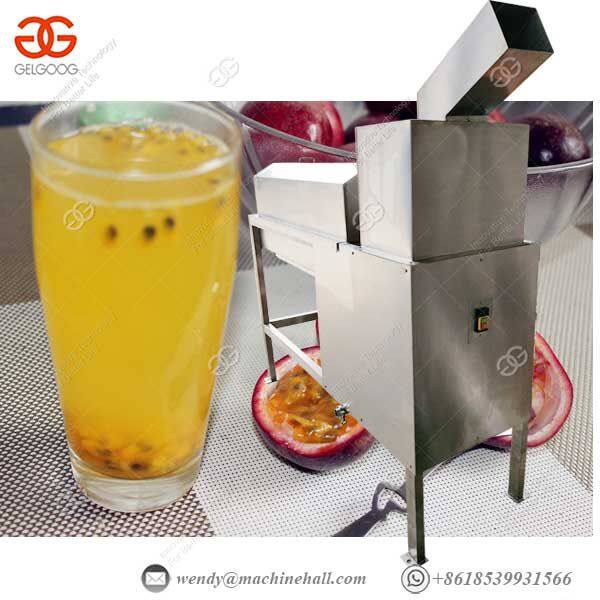

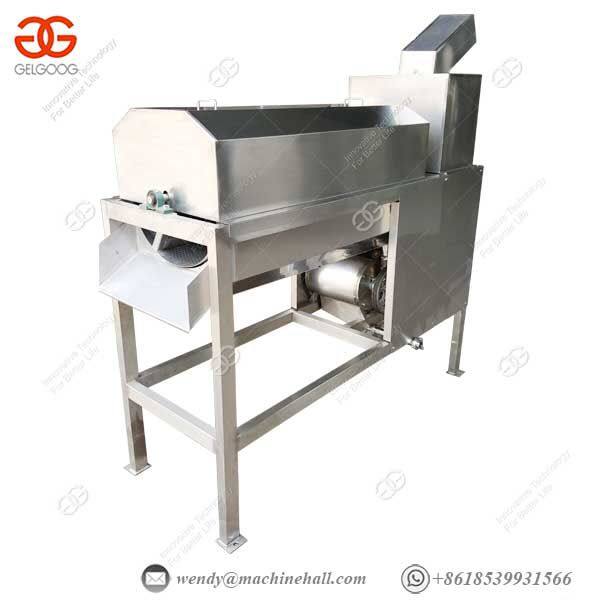

This machine is a breakthrough in the deep processing equipment of Passionflower (passion fruit), which perfectly solves the complicated process of artificial peeling and juicing of Passionflower (passion fruit) and realizes the skin of Passiflora (passion fruit). Three kinds of seeds, juice, so it is a passion fruit (passion fruit) juicer, a passion fruit (passion fruit) peeling machine, or a passion fruit (passion fruit) The seed removal machine (taken machine), and the equipment except the transmission part are made of high quality stainless steel to meet the customer's QS certification requirements. Our company has superior geographical position and convenient transportation. We warmly welcome new and old customers to come and inquire.

Parameter：

Specification:

The working principle is that the broken pulp, juice and skin enter the double-screw juicer through the feeding hopper, and the pitch gradually decreases due to the spiral diameter of the spiral along the slag outlet direction, and the spiral cavity is gradually pushed when the material is spirally advanced. The volume is reduced to form a press of the material. The direction of rotation of the spiral main shaft is viewed from the feed hopper toward the slag groove in a counterclockwise direction. The raw material is added to the feed hopper, pressed under the advancement of the spiral, and the pressed juice flows through the filter into the bottom of the juicer, and the waste is discharged through the annular gap formed between the spiral and the tapered portion of the pressure regulation. The pressure head moves axially and is directly controlled by the hydraulic system.
Adjusting the pressure of the hydraulic system, that is, adjusting the resistance of the slagging, the juice rate can be changed. However, if the hydraulic system pressure is too large, under strong extrusion, some of the slag particles will be squeezed out through the filter together with the juice, although the juice is discharged. Increase, but the quality of the juice is relatively reduced, the pressure of the hydraulic system should be determined according to the specific process requirements of the user. Thereby the purpose of automatic separation of juice and slag is achieved.
