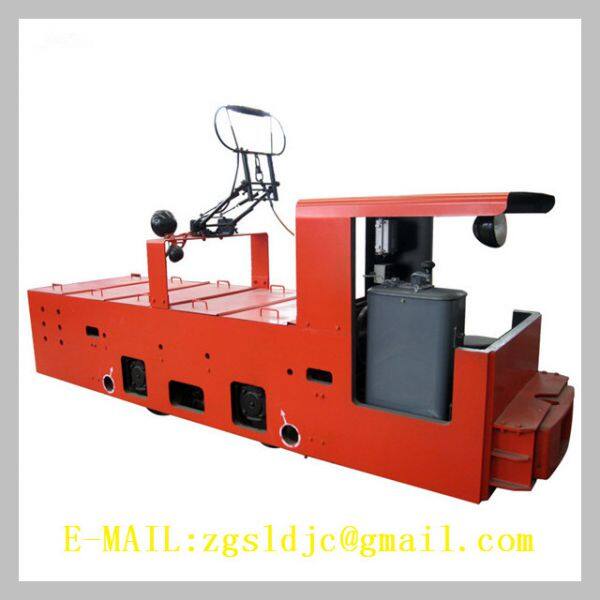

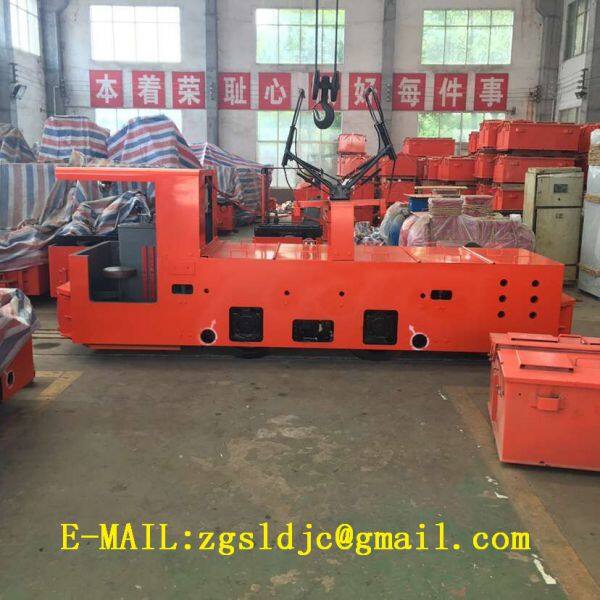

11 Km/h? High Pressure Narrow Gauge Trolley Locomotive
You May Like
-
Tunnel Railway 6t - 10t Trolley Mining Locomotive
-
Tunnel 10 Km/h Trolley Mining Locomotive
-
6t - 10t Trolley Electric Locomotive Mechanical Brake
-
Mechanical Brake Trolley Electric Locomotive 10 Ton / 7 Ton
-
With Ac Converter 10 Ton / 7 Ton Trolley Locomotive For Mine
-
Trolley Electric Locomotive With Frequency Motor 250v 7ton
Product Description
1.Long service life of gear
2.More powerful traction effort
3.Faster running speed
Specification:
| Adhesive Weight | Customized |
| Track Gauge | 600, 762 or 900 mm |
| Traction | 13.05 kN,15.09 kN |
| Max. Traction | 17.2 kN |
| Speed | 11 km/h |
| Voltage | 550 V,250 V |
| Power | 24kW*2 , 21kW*2 |
| Size(L*W*H) | 4470 mm |
| 1054, 1216 or 1354mm | |
| 1550mm | |
| Pantograph | 1800~2200mm |
| Wheelbase | 1100mm |
| Wheel Diameter | Φ680 mm |
| Min. Turning Radius | 7m |
| Electromechanical Controller | Resistance, IGBT or AC Converter |
Brake | Mechanical Brake |
Description:
Locomotive
us ing DC electrical line, DC transformed to three phase AC by computer
traction transformer, the voltage and frequency can be adjusted, which
can drive two AC asynchronous motor, by reduction gear driving axle to
tract locomotive.
The core parts of traction transformer using 32 digital DSP chip, fast speed with quick response.
Have good sticking and big traction.
Reliable AC electrical motor, with wide range of speed regulation.
Less cost for maintenance, can avoid ring fire and burnt compared to DC driving.
The
products are suitable for transportation traction on the narrow rail
for the field of coal, metallurgical industry, mining, forest, railway,
road tunnel construction and etc.
