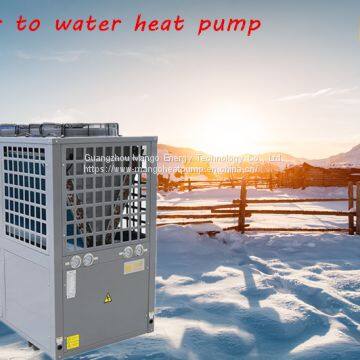

CE certified EVI air source heat pump for floor heating
USD $1000 - $1500
/ Piece
1 Piece(Min.Order)
- Huang Pu Port
- T/T L/C
- 7 days
You May Like
-
New Product! 22kw all in one air water inverter heat pump for house heating
-
10.5kw-99.4kw Geothermal Heat Pump Water To Water Heat Pump For Heating, Cooling
-
3.5kw~10.5kw household SPA pool heat pump
-
3.8kw~10kw heating capcacity household air to water heat pump(heating mode, monoblock type)
-
Low temperature heat pump evi air source floor heaint and cooling
-
High temperature air source heat pump 70~75℃ hot water with CE, TUV
Product Details
| Brand Name | Mango | Place of Origin | China | |
| Model Number | MG-10KFGRS |
Product Description
| Model | MG-03KFGRS | MG-03KFGRS/380 | MG-05KFGRS | MG-10KFGRS | MG-20KFGRS | |||
| Standard components | Cabinet/color | Spray coating | ||||||
| Refrigerant | R407C | |||||||
| Power supply | 220V~240V/50Hz/1ph | 380V~415V/50Hz/3ph | ||||||
| Compressor type | Copeland EVI compressor | |||||||
| Compressor model * quantity | ZW30KSE*1 | ZW34KSE*1 | ZW61KSE*1 | ZW61KSE*2 | ZW108KSE*2 | |||
| Condenser | High efficiency shell and tube heat exchanger | |||||||
| Economy unit | Plate heat exchanger | |||||||
| Evaporator | Blue hydrophilic aliuminium foil,wavy fin and copper tube heat exchanger | |||||||
| Throttle unit | Heat expansion valve | |||||||
| A/C contactor | Fuji | |||||||
| Thermal relay | Fuji | |||||||
| Controller | Muti-function controller | |||||||
| Protection function | Tempreature protection, time protection, water flow protection, antifreeze protection, current protection | |||||||
| Low pressure switch | 0.05/0.15MPa | |||||||
| High pressure switch | 3.0/3.2MPa | |||||||
| Power supply line size | 2.5mm2 | 2.5mm2 | 4mm2 | 6mm2 | 10mm2 | |||
| Package | W*D*H | 910*500*1320 | 910*500*1320 | 1160*500*1410 | 1510*820*1320 | 1940*1120*2180 | ||
| Specifications | Heating capacity | 20oC | kW | 10.8 | 11.8 | 20.6 | 40.6 | 74.4 |
| Input power when heating | kW | 2.81 | 3.1 | 5.4 | 10.7 | 19.6 | ||
| Rated current | A | 12.4 | 5.9 | 9 | 17.6 | 35.2 | ||
| COP | 3.84 | 3.81 | 3.81 | 3.79 | 3.80 | |||
| Hot water capacity | L/H | 232 | 254 | 443 | 873 | 1599 | ||
| Heating capacity | -10oC | kW | 6.3 | 7 | 12.6 | 24.4 | 43.2 | |
| Input power when heating | kW | 2.58 | 2.9 | 5.1 | 9.9 | 17.4 | ||
| COP | 2.44 | 2.41 | 2.47 | 2.46 | 2.48 | |||
| Hot water capacity | L/H | 135 | 150 | 271 | 524 | 929 | ||
| Heating capacity | -20oC | kW | 4.9 | 5.4 | 10.3 | 19.6 | 31 | |
| Input power when heating | kW | 2.45 | 2.68 | 5.05 | 9.8 | 15.36 | ||
| COP | 2.00 | 2.01 | 2.04 | 2.00 | 2.02 | |||
| Hot water capacity | L/H | 105 | 116 | 221 | 421 | 666 | ||
| Rated outlet water temp | oC | 55 | ||||||
| Max outlet water temp | oC | 60 | ||||||
| Water flow | m3/H | 2415 | 2638 | 4606 | 9078 | 16636 | ||
| Level of protection | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | |||
| Electric shock proof grade | I | I | I | I | I | |||
| Noise | dB(A) | ≤55 | ≤55 | ≤58 | ≤66 | ≤75 | ||
| Net weight | kg | 112 | 112 | 164 | 320 | 556 | ||
| Gross weight | kg | 118 | 118 | 174 | 333 | 606 | ||
| Dimension | W*D*H | 830*490*1160 | 830*490*1160 | 1090*480*1260 | 1450*740*1150 | 1850*1000*1950 | ||
| Pipe size | mm | DN25 | DN25 | DN25 | DN32 | DN50 | ||
| Working mode | heating | |||||||
