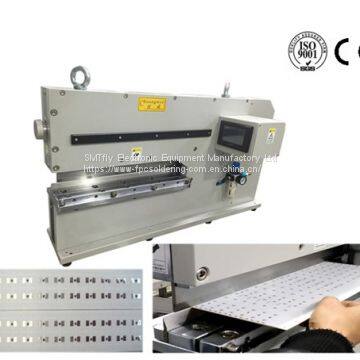

PCB Cutting Machining,CWVC-480

Feature:

1. Separates boards up to 3.5mm thick

2. Shears boards safely with parts as close as 0.5mm to the score line, including ceramic capacitors

3. Operator foolproof! Panels cannot be inserted into the Knives except on the score line

4. Pneumatically driven

5. Handles high components up to 70mm

6. Bow waves that can occur with round knives are avoided

7. Easy adjusting of distance between knives

8. Independent lab tests show less than 200 macrostrains of stress measuring compression and tension.

9. Has capacity counter function

Specification:

Our advantages:

- gap for insertion of the board can be adjusted easily by means of a knob in the front of the machine
- integrated waste suction prepared
- repaneling process without vibrations
- easy-to-service design
- pneumatically driven (FESTO)
- operation and maintenance possible without precognition
- high power reserves, operations already possible at 2 bar
- pneumatic control placed in a separate unit for easier maintenance

The reason you choose

FAQ:

1.- I see according to the specification there may be up to 1000 files. How many joints can we have per file ? I need to know the programing limitation of the machine.

R: No limit on the joints per each program. More than 1000 files.

2.- Can you send me user manual of the robot ? I need to see the programing abilites. I need to know every parameter we can set for every joint.

R: We will offer the instruction manual when delivery, don't worry about that.
3.- Also where are stored the programs - in the robot or in memory card ?

R: The programs are stored in the robot.
4.- What is the teaching pedant for besides programing ? Can I copy soldering programs to another robot CWDH-411?

R:Yes, program can be copied from 1 robot to another robot.

In generally, each PCB has 1 program with hundreds of joints.

There are total 144M storage, 100000 joints take 3M.

If there are 1000 joints per each program, the robot could store 4800 files.

5.- Is it possible to start the program from particular joint (not from the begining but for example from 5th joint)?

R: Yes, you could start from particular joint.
6.- Is it possible to execute only one joint ?

R: Yes, it is OK.
7.- Is it possible to set X,Y,Z offest for every joint ? What I mean is if the soldering tip can be set in the way it comes into the joint under some angle?

R: Yes, you could set offset, solder paste capacity, soldering time for every joint.
8.- Is it possible to set the tip to come out from the joint under angle as well ?

R: Yes, no problem.
9.- Can I set feeding/backing speed for every joint ?

R: Yes, you could set the soldering time for every joint.
10.- I didn't see how much power is the soldering heater (I can only see the total machine is 2300Watts) ?

R:It is 150W.
11.- Also what is so powerful in the robot so it is 2300 watts ? Our current robot is 600 Watts total power and it is almost the same. The soldering tip is 400 Watts and it has PC inside. So I expect the motors to be no more 150 Watss totally. But here we have 2300 Watts? I am just curious what is so powerful ?

R: The machine is total 750W, including the soldering heater 150W.
12.- Do we need air for the machine and if so how much ?

R: Yes, need air. In generally, it works by 2-3 kg/c㎡. Do you have a air pump in your factory? If yes, it is enough, because standard industrial air pump has 6-7 kg/c㎡.
13.- Also do you have soldering tip like below (this is what we use right now)?

R: Yes, we could custom make according to your soldering requirements based on your PCB if we don't have exsiting tips.

14.- I forgot to ask you also if it is possible to program arrays with the robot.

R:Yes, it is ok to program arrays.

15.-What is the speed for x-y movement?

R:X/Y axis is 600mm/s, max speed for Z axis is 400mm/s
