Egg Grading & Packing Machine for Poultry Farm

Automatic Egg Grading & Egg Packing Machine

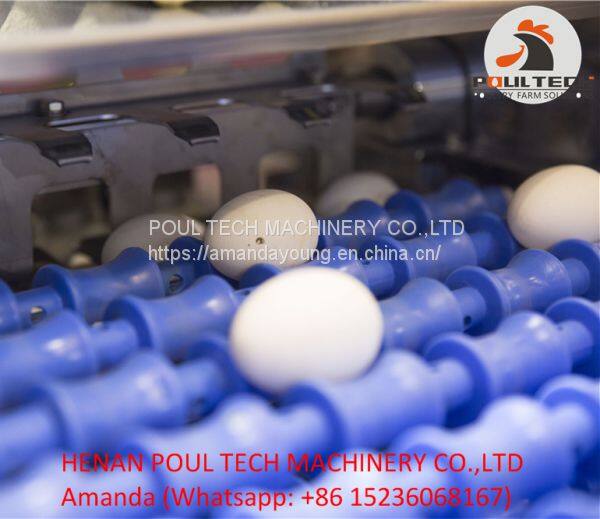

1. Putting Egg Module

The eggs will be arranged neatly when they are transported through the egg conveyor, and the broken egg will be eliminated through the first sorting, thereby increasing the egg cleaning efficiency.

2. Cleaning Module

Use a brush to clean the eggs three times to prevent bacterial contamination of the egg transfer unit.

3. Adjust Direction Section

A device that adjusts the direction of the egg using the centrifugal force of the egg. The pointed tail of egg faces downwards, and the rounded head (air chamber) faces upwards, maintain freshness for a long period of time.

4. Drying Section

Use a fan to force the air and brushing water on the surface of the egg.

5.  Ultraviolet Sterilization

Removes and kills harmful bacteria such as E. coli, Staphylococcus, and molds. The results of testing the eggs sterilized by this unit showed that the sterilization effect was significant.

6. Egg Inspection Section

In the dark room with the light (three-wavelength fluorescent lamps and tungsten halogen lamp) to sort defective eggs (opaque, broken) unit.

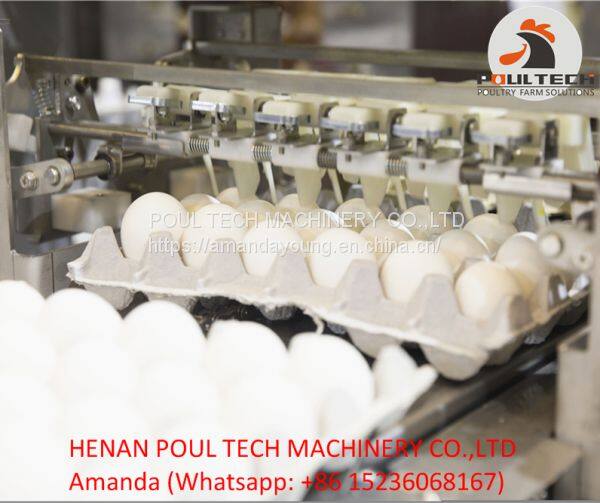

7. Loading Plate Position

Eggs are sorted by weight into the tray unit. Usually, one set of equipment is divided into 5 levels according to weight, but according to the actual situation of the farm, it can also be divided into 4 levels and 3 levels for one set of equipment.
