Home > Products > Plastic mold > Jinhong Mould Fittings Locking block sets

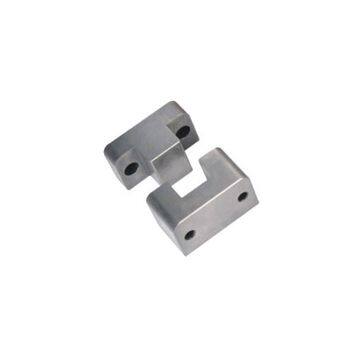

Jinhong Mould Fittings Locking block sets
USD $1 - $999
/ Piece
1 Piece(Min.Order)
- 99999 Piece / Pieces per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
You May Like
Product Details
| Brand Name | Jinhong | Place of Origin | China | |
| Model Number | JH048 |
Product Description
| Material | Hardness | Heat Treatment |
| SKS30 | HRC53°~56° | Vacuumed |
| SKD11 | HRC58°~62° |
| Type | W 0 -0.01 | T±0.25 | A ±0.05 | B±0.05 | C | D | E | Assembly |
| screw | ||||||||
| JH048-15 | 38.1 | 25.4 | 22.17 | 9.47 | 13.13 | 12.7 | 7 | M5 |
| JH 048-25 | 63.5 | 38.1 | 34.87 | 15.82 | 19.48 | 25.4 | 8 | M6 |
| JH048-35 | 88.9 | 50.8 | 44.4 | 19 | 25.7 | 36.58 | 11 | M8 |
| F | f | G | H±0.25 | R±0.25 | S±0.25 | S1±0.25 | S2±0.25 |
| 10.5 | 6 | 7 | 22.1 | 7 | 25.4 | 6.35 | 12.7 |
| 12.0 | 7.2 | 8 | 34.8 | 8.5 | 44.45 | 9.53 | 19.05 |
| 15.5 | 10.5 | 11 | 44.2 | 9.5 | 63.5 | 12.7 | 25.4 |
Order:Type
