Soil Dredging Equipment 20-30 Meters Hydraulic Cutter Suction Dredger
You May Like
-
80-110m3/hr High Strength Sand Washing System
-
Non-self Propelled 200-1000m Small Sand Dredger Vessel
-
Professional Mining Diamond Dredger 200m3/h
-
High Pressure Mining Diamond Dredger 100m3/h , 150m3/h
-
Bucket Chain Gold Dredger Boat 150m3/h 200m3/h High Performance
-
Sand Mining Machine Spiral 15m , 20m
Product Description
Features:
1. The dredger could be divided into bucket type and pump suction type. Bucket type dredger is applied for waterways with high percentage of clay and gravels, while pump suction type can only be used for terrains with low percentage of clay and gravel.
2. Customized according to specific requirements for dredging depth and capacity.
3. Iron ore needs to be retrieved first with magnetic separator if the percentage is high in the raw ore, then gold, diamond, zirconium will be concentrated.
4. The dredger is composed of several gravity concentrators. The concentration ratio could reach as high as 1:1000, and the recovery efficiency about 90% after series of separator.
Application:
1.Jet sand suction dredger applied to dredging rivers, delisting lakes and ponds, reclaiming land, cleaning ports and pumping sand.
2.widely used in rivers, lakes,reservoir and seas for dredging .Especially suitable for exploiting seashore, clearing port and pier with energy saving.

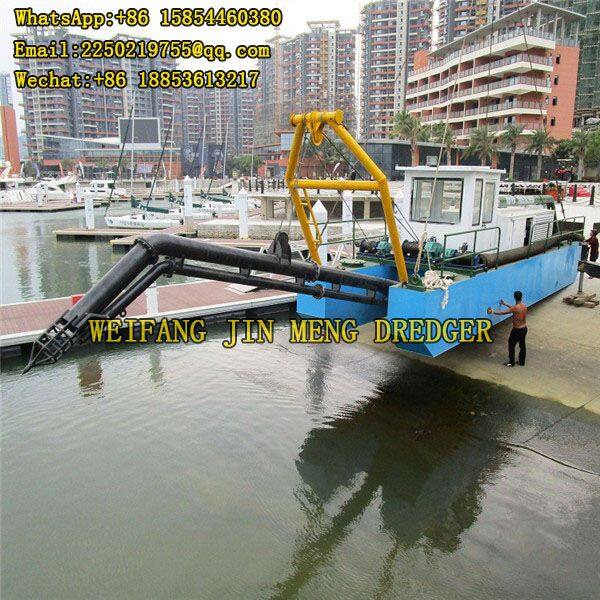

Jet suction dredger is widely used to recover underwater materials from great depths and can also extract sand from below a clay overburden. Jet suction dredger is also called jet sand suction dredger. Jet suction dredger is equipped with high pressure water pump and powerful sand suction pump. The water pump can produce high pressure high speed water jet to impact the bottom of sand layer and splashing the mixed sand around the suction head, and the sand suction pump conveys the sand to the destination through the discharge pipe.
Ocean Pump brand jet suction dredger consists of dredger body, high efficiency wear resistant marine sand pump, high pressure water pump, famous brand diesel engine and discharge system. Our jet suction dredger feature integrated design, high efficiency, good wear resistance, flexible operation, energy saving in the delivery of solid particles. Our jet suction dredger is the most economic sand dredging equipment for loose fine sand in the water bottom. We can customize various small and medium jet suction dredgers for your demands.
