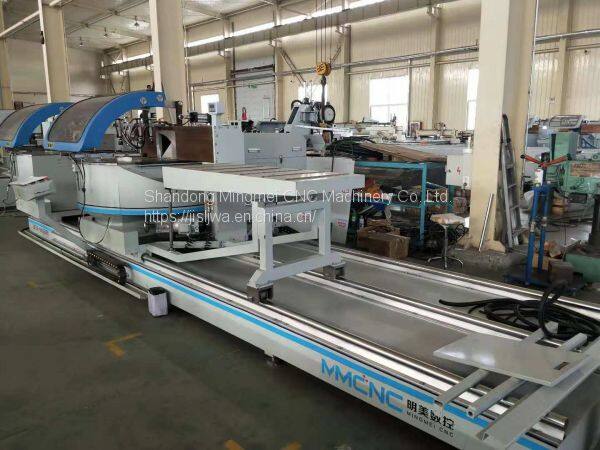

Arbitrary Angle Double-head Cutting Saw CNC

 Arbitrary Angle Double-head Cutting Saw  CNC

 SKZXR-600*5300

Euipment Feature

1.It is mainly used for processing of extra-wide aluminum profile,also can be used to process aluminum profile vertical end-face material -discharging. Adopt servo motor to drive reducer ,implement saw blade rotating positioning at any angle between 45°-90°.

2.It is new designed to meet the development of modern aluminum curtain wall,aluminum template processing industry and radiator industry.

3. Adopt servo motor to drive reducer,implement saw blade rotating positioning at any angle between 45°~90°.

4. Two cutting heads can swing positioning at any angle between 45°~90°

5.separately,moveable head feeding material continuously,fixed cutting head cutting circularly;but also can work simultaneously ,can cut needed length and profile two ends angle at one time.

6.Hard alloy teeth cutting blade,high cutting speed、high produce efficiency 、high process accuracy.

Technical Parameter

Power supply  3 Phase four wire  380v  50HZ

Cutting head motor  Power 2*3kw

Rotate speed 2800r/min

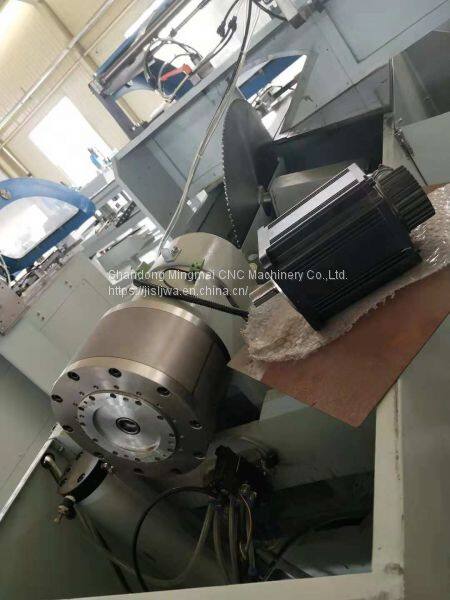

Saw blade swing angle servo motor    power 2*0.9 kw

Cutting head horizontal move servo motor   power 1.5kw

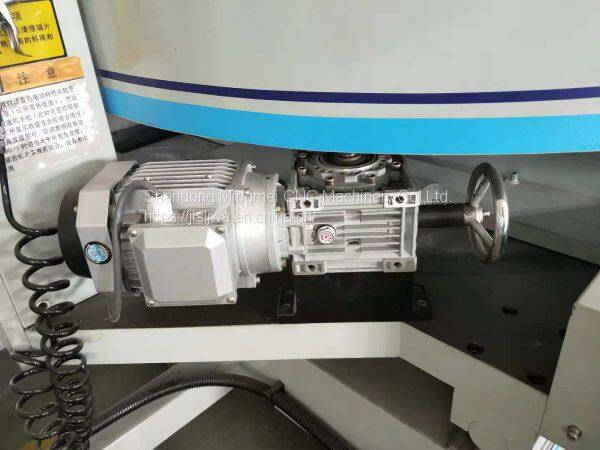

Cutting head turn angle motor power 2*0.55kw

Working air pressure  0.5-0.8 mpa

Saw cutting length max 5300mm

Saw cutting width*height max 500*180mm 90°

Saw cutting height  Max 210mm  90°

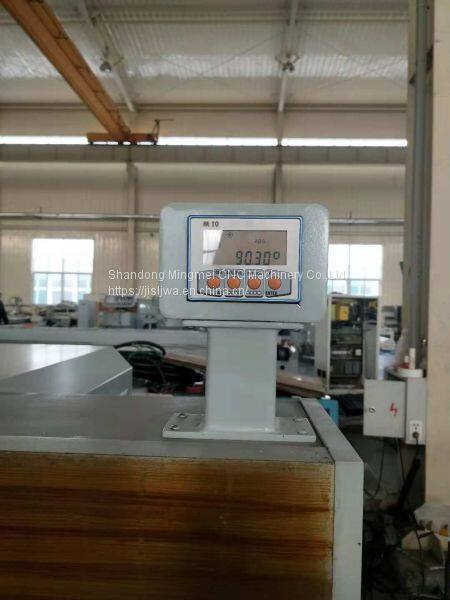

Saw cutting angle blade 45°~90°arbitrary angle

Cutting head 45°~90°arbitrary angle

Cutting  feed speed stepless speed regulation 0-3m/min

Blade specification φ600x4.4x φ30mm  Z=120

Overall size 7500*2450*1700mm

Weight about 5000kg
