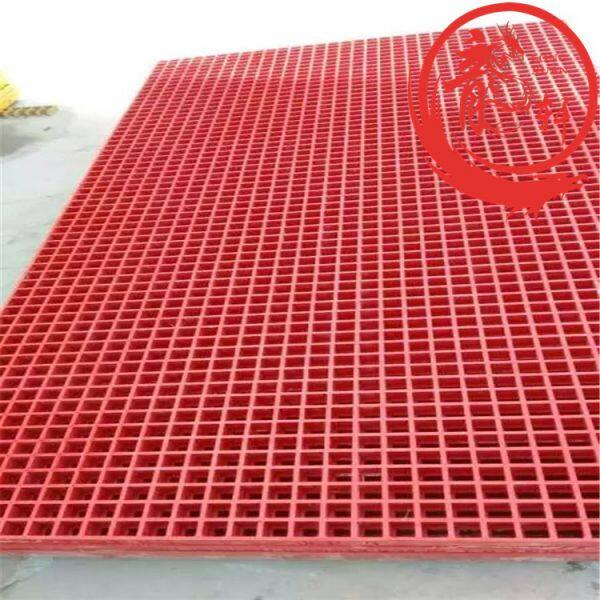

2440mm Corvex Fiberglass Grating Structural Grating

Features:

1, Exellent loadability

2, Lightweight, high impact

3, Fire resistant

4, Slip and age resistant

5, Corrosion&chemical resistant

6, Non-magnetic&insulation

Description:

The FRP grating is a kind of unsaturated polyester resin (including m-benzene, o-benzene, vinyl, phenolic, bisphenol A, etc.) as the matrix, glass fiber roving (winding or extrusion, neutral alkali or alkali-free) as the skeleton, in the metal mold by knitting die pressing or hand paste manufacturing, then heating the overall shape, product appearance. Smooth, beautiful, high quality, glass fiber content of more than 30%.

The color: red, yellow, gray, black, blue, green.

1. The FRP grating used in car wash room is usually yellow and red, and its color is bright and more beautiful.

2. The floor of the factory is usually made of grey FRP gratings. In these places, the aesthetic requirements are relatively low.

3. In lawn, the leaky floor is usually green FRP grille, which is more beautiful with the grass around.

The structure of FRP grille:

FRP grating is formed by interlacing braided glass fiber and resin casting.

1, glass fiber interlacing textile and resin fully saturated, so that the degree of corrosion of grating.

2. The overall structure of the grating cover will distribute the load evenly, which is helpful for the installation of the grating and the uniform stress of its supporting structure.

3. The glossy surface and the grating face makes the grating self cleaning.

4. Make the surface concave with the upper grid.

Main dimensions of FRP grating:

Whole panel size: length 1220mm, width 3660mm, width 2440mm and width 1000mm, length 4000mm;

Thickness: 25mm/30mm/38mm/40mm/50mm/65mm, etc.

Single size: 38*38mm/25mm*100mm, etc.
