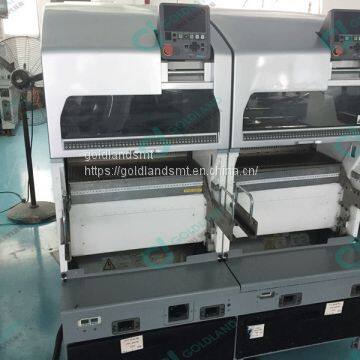

smt FUJI NXT mounter

smt FUJI NXT mounter

If you need pls contact:jack@goldlandsmt.com

pplicable PCB size 48 x 48 mm to 250 x 510 mm (double conveyor)*48 x 48 mm to 250 x 610 mm (single conveyor) 48 x 48 mm to 534 x 510 mm (double conveyor)*48 x 48 mm to 534 x 610 mm (single conveyor)

(L x W)

PCB loading time For double conveyor: 0 sec (continuous operation)

For single conveyor: 2.5 sec (transport between M3 III modules),

3.4 sec (transport between M6 III modules)

Part size(mm) 0402 (01005") to 7.5 x 7.5 1608 (0603")to 74 x 74 (32 x 100)

Height:Up to 3.0 mm Height:Up to 25.4 mm

Placing accuracy +/-0.038 (+/-0.050) mm (3σ) cpk≥1.00* +/-0.030 mm (3σ) cpk≥1.00

Machine dimensions L: 1295 mm (M3 III x 4, M6 III x 2) / 645 mm (M3 III x 2, M6 III)

W: 1900.2 mm, H: 1476 mm

GOLDLAND ELECTRONIC TECHNOLOGY CO., LTD focus on global Surface Mount electronic assembly sector for 10 years. We mainly provide competitive price and high quality products for various brands of SMT equipments, SMT feeders, SMT nozzles, SMT feeder spare parts, AI equipments, AI spare parts and other related products. The brands is: FUJI, KEM, PANASERT, YAMAHA, JUKI, Hitachi, Universal, Siemens, I-pulse, Assembleon, DYNAPERT, TDK and so on.
