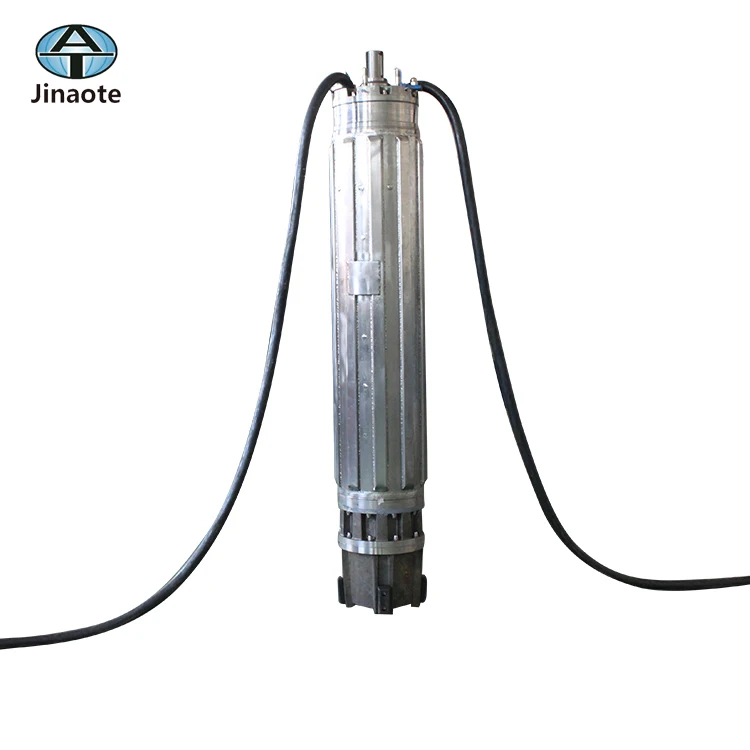

submersible 3 phase motors for borewell
- 2000 Piece / Pieces per Month
- tianjin
- T/T L/C PayPal Cash
- 3 days
You May Like
-
long life deep well industrial horizontal centrifugal submersible pump
-
industrial centrifugal pump
-
water motor pump price
-
electric agriculture irrigation well water submersible motor pump
-
submersible sea water pump submersible water pump
-
TM456 Series motor submersible oil electric water well pump for oil well
Product Details
| Brand Name | jinaote | Place of Origin | China | |
| Model Number | 1234 | Type | Asynchronous Motor | |
| Output Power | from 134 hp | Frequency | 50hz/60hz | |
| Efficiency | IE 3 | AC Voltage | 460 / 480 V | |
| Certification | CCC, CE | Phase | Three-phase | |
| Protect Feature | Waterproof |
Product Description
Aote’s submersible motor designs are manufactured for long and reliable service.The winding wire is 100% copper wire.You can choose the materials of the casing(stainless steel or cast iron or other).
Size: from 150mm(6inches);
Power:from 7.5kw(10hp);
Power supply:from 380v to 10kv;three phase;
1142/2 ac asynchron motor
Type | Rated Power | Rated Voltage (V) | Rated Current (A) | Efficency (%) | |
|---|---|---|---|---|---|
HP | KW | ||||
6H1142/2-260 | 349 | 260 | 6000 | 32 | 89 |
6H1142/2-300 | 402 | 300 | 36.5 | 89 | |
6H1142/2-350 | 469 | 350 | 42.5 | 89 | |
6H1142/2-420 | 563 | 420 | 50 | 89 | |
6H1142/2-470 | 630 | 470 | 55.5 | 89 | |
6H1142/2-520 | 697 | 520 | 61.5 | 89 | |
6H1142/2-600 | 804 | 600 | 70.5 | 89 | |
Aote Tianjin pump co.,ltd was established in 2004,which is a professional organization that engages in designing and producing electric submersible oil pumping unit and electric submersible water pumping unit.We are recognized by CCS and ABS, and have got the certification of ISO9001.
Collaboration is the foundation of our business. We listen to our customers’ requirments and provide best solutions accordingly with minimized cost. Best quality, fast delivery, good after sale service are our core values.
