mpeg2 catv encoder for catv headend design

Outline

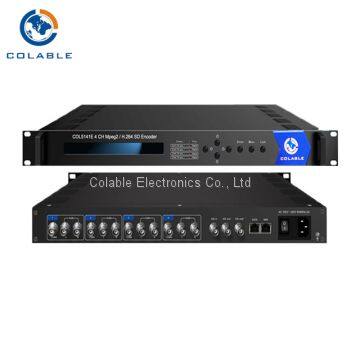

The COL5141E 4CH MPEG-2 H.264 SD Encoder is our newest professional SD audio & video

encoding and multiplexing device with powerful functionality. It has 4independent channels of

unbalanced audio & CVBS video input interfaces or SD-SDI input interface, supporting MPEG-2

and H.264 encoder type. Furthermore, it can support the MPEG-1 Audio layer 2, LC-ACC, HE-

AAC, AC3(optional) and each channel can support ultra low bit-rate (0.25~15Mbps for H.264 e

ncoding, and 0.5~15Mbps for MPEG-2 encoding). Moreover, it has an ASI input and can multip

lex the input TS with the 8(4) encoded SPTS to generate a MPTS output, and users can select

the MPTS and 8(4) SPTS through the front panel operation.

Features

1.Support H.264,Mpeg2 video encoding

2.Support MPEG1 Layer 2, LC-AAC, HE-AAC(v2), AC3(optional) audio encoding

3.Applicable for one seg(ISDB-T) utilization

4.Support PSI/SI editing and inserting

5.Supports VBR/CBR video bitrate mode

6.Supports MPTS or 4 SPTS UDP IP Output

7.Real-time output bit-rate monitoring

8.LCD / keyboard and SNMP/web management

 Technical Specifications

Colable Electronics Co., Ltd is locate in City Chengdu, Sichuan province, main science

and technology R&D center of west China, also one base on Radio and TV broadcasting

industry.

We are specializing on TV broadcasting for about ten years, with network building among

domestic and overseas. Our projects relate to different areas, such as city or village cove

rage, hotel, hospital, university, casino etc. Colable electronics is expert transforming tele

vision system from analogue to digital, or building new digital system in most cost-effective

way. That is the reason why our customers choose us.

Our main products include, satellite decoder (both free and scrambled styles MPEG2/4/

H.264 SD & HD encoder; TS multiplexer, scrambler, QAM/QPSK/COFDM modulator, CAS

& SMS, EPG, DVB-C/S/T set top box, MMDS transmitter, antenna, etc.

Products Qulity:  Most of our products get CE approved:set top box have report from State Ad

ministration for Entry Exit Inspection and Quarantine.

Technical Support: Our R&D department is composed br the most experienced engineer with

young university graduate,bring new energy continuously. Customers will be informed at first ti

me as long as our software upgrade or new management software version come out .

Shipment Speed: All packages of orders will be shipped 2-5 days sfter customer deposit.

Usually we use the speediest DHL/UPS/Fedex for small order delivery,and we have  long term

cooperated carriers for common air & sea delivery with cheap price and high speed.

Guarantee:All products will have life-long skill support ,head ends for free repair within 3 years.

Application

FAQ

1. Q: What is the payment way you can accept?

A: L/C, TT, Western Union, Credit Card etc.

2. Q: What’s the Lead time for your products?

A: Usually 2-3 working days for headend, 2-4wks for STB or other user end products.

3. Q: What delivery way you adopt?

A: Usually we suggest sample or small order by express or air, big order or big size

goods by sea. We cooperate with many express companies (DHL , UPS, FedEx, EMS etc.)

and famous global carriers with high discount for freight.
