Home > Products > Cross Flow Fan > 40*250mm 24V dc Sleeve Bearing High Speed 2000RPM Cross Flow Fan

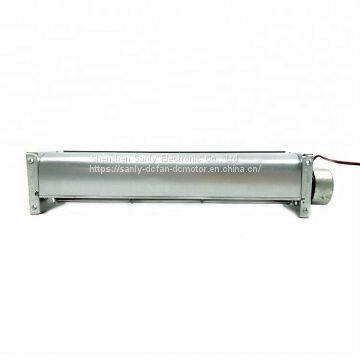

40*250mm 24V dc Sleeve Bearing High Speed 2000RPM Cross Flow Fan
- Shenzhen
- T/T Credit Card Cash
- 10 days
You May Like
-
40*250mm 12V dc Sleeve Bearing High Speed 1800RPM Cross Flow Fan
-
12v dc electric boat brushless bldc motor
-
5852 Series electrical brushless 12v boat fan bldc dc motor
-
Welding machine cooling fan aluminum impeller dc brushless cross flow fan
-
Industrial micro standing ventilation exhaust electronical fan
-
120x120x38mm high air volume low price axial flow fan
Product Details
| Brand Name | SANLY | Place of Origin | China | |
| Model Number | SF40250BH | Type | Micro Motor | |
| Certification | CE, ROHS | Usage | Boat, Car, Fan, Home Appliance | |
| Construction | Permanent Magnet | Voltage(V) | 24VDC | |
| Output Power | 9.6W | Continuous Current(A) | 0.4A | |
| Speed(RPM) | 2000RPM | Commutation | Brushless |
Product Description
40*250mm 24V dc Sleeve Bearing High Speed 2000RPM Cross Flow Fan
Parameter
Series | 40250 | Weight | 400g | ||||||||
Bearing | Sleeve/Ball bearing | Power Cord | 22AWG2468 | ||||||||
Insulation Grade | Class B | Protection Grade | IP44/IP45 | ||||||||
Operating Temperature | -10℃ ~ 60℃ | Life Expectancy | 15000-50000h | ||||||||
Rated | Operating Voltage Range | Rated Current | Rated input power | Speed | Maximum | Maximum | Noise | ||||
Model | Function | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | dB-A |
SF40250S/BM | FG/PWM/RD | 12 | 6to13.5 | 0.25 | 3.00 | 1500 | 1.26 | 44.5 | 1.66 | 0.065 | 40.0 |
SF40250S/BH | FG/PWM/RD | 12 | 6to13.5 | 0.50 | 6.00 | 1800 | 1.51 | 53.3 | 1.80 | 0.071 | 44.0 |
SF40250S/BM | FG/PWM/RD | 24 | 18to25.5 | 0.30 | 7.20 | 1800 | 1.51 | 53.3 | 1.80 | 0.071 | 44.0 |
SF40250S/BH | FG/PWM/RD | 24 | 18to25.5 | 0.40 | 9.60 | 2000 | 1.68 | 59.2 | 1.92 | 0.076 | 46.0 |
Packing & Shipment
PACKING
Standard export packing or packing based on customer's requirements.
SHIPMENT
1. By Express: DHL, FEDEX, UPS, TNT, SF EXPRESS and China Post, China Small Package, etc.
2. By Air: We can ship from Shenzhen.
3. By Sea: EXW/FOB Shenzhen, CIF your convenient destination all are acceptable.
