mining processing EQUIPMENT GF-200 Air Classifier
- 9810 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 60 days
You May Like
Product Details
| Brand Name | GUOTE | Place of Origin | China | |
| Model Number | GF-200 | Type | Gravity Separator | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 12MONTHS | Weight | 1900kg | |
| Dimension(L*W*H) | 2600*3100*1900 | Production Capacity | 2000kg/hour | |
| Voltage | 380/440 | Condition | New | |
| Power(W) | 73kw |
Product Description
Low price high quality mine plants Air Classifier with cyclone machine
Our air classifiers, which include self-diffluent classifiers and multi-stage classifiers, are mainly used to sort materials by the combination of particle size, density and shape, etc.; and also used to wipe off impurities in powder materials. Specifically, air separators can be used for separating coarse materials in submicron powders and nano-powders.
Classification for sticky, low-fluidity substances is also possible.
Common Features of GUOTE mine plants Air Classifiers:
1. Low energy consumption: Our air classifiers can save as much as 50% energy comparing to traditional vertical type or horizontal type classifiers.
2. High production efficiency: our air classifier combined the advantages of inertial classification technology and centrifugal classification technology.
3. High precision classification help guarantee that there is no oversize granularity and remains, etc. in finished products.
4. Longer service life: our air classifier has a low rotation speed while classifying materials in the same size, which help reduce the wear of impellers.
5. Full range of specifications: different air classifiers will be offered for your different needs.
6. Can be matched-use with wide variety of grinding mills, like ball mills, Raymond mills, impact mills or jet mills, etc.
7. Eco-friendly: No dust pollution for negative pressure production environment.
8. High automation gives a simple operation and stable performance.
1. Applications of Air Classifiers:
Series GF Air Classifier (Series GF Pneumatic Classifier)(For details, please contact me:Annie Chang,Mob:0086-18678029069(whatsapp),E-mail: Annieflower.chang dot )

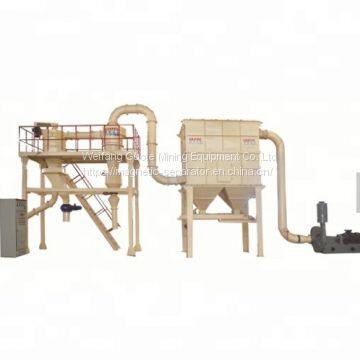

The classification device is composed of pneumatic classifier, cyclone, collector , induced draft fan,conmtrol cabinet etc . Equiped with second air inlet and vertical impeller rotor ,the materials are fed in visa the bottem roller under the force generated from the induced draft fan and then mixed with first input air to disperse particle and then brought to classifying zone .
Owing to the high rotary speed of classifying rotor, the particles are under the centrifugal force produced by the rotor and centripetal force generated from induced draft fan . When the centrifugal force is stronger than then centripetal force , the coarse particles fall down along inside roller. the second air is induced to sieve the coarse materials and seperate the fine powder that stick on or mixed with coarse . after the coarse material is discharged from classifier . the over -milled powder are collected by the cyclone and pulse collector .
2. Work Principle:
As a forced centrifugal classifier with secondary air entry and stand grading rotor, the classifier is composed of grading rotor, guide vane rectifier and screw feeder. The materials are fed through the upper cartridge and the grains will be sieved and well distributed by the incoming air, which brings the grain to the grading zone. The centrifugal force produced by the fast rotation of gather in the centripetal force by the pneumatic atheism act on the grading grains when the centrifugal force on the grain is greater than the centripetal force. The coarse grains above the grading range will be swirled down along the untrained wall, the second air will be rectified to uniform cockney through the guide wane and separate the thinner grains from the discharge port. The thinner grains below the grading range will be blasted to cyclone separator and collector whereas the purified air will be vented outside.(For details, please contact me:Annie Chang,Mob:0086-18678029069(whatsapp),E-mail: Annieflower.chang dot )
3.Technical Parameter
| Model | Capacity(KG) | Classifying Efficiency(%) | product size(um) | power (KW) |
| GF010 | 10-50 | 70-90% | D97=5-50 | 7 |
| GF020 | 50-350 | 70-90% | D97=5-50 | 15-19 |
| GF050 | 100-800 | 70-90% | D97=5-50 | 25-30 |
| GF100 | 300-1500 | 70-90% | D97=5-50 | 41-48 |
| GF200 | 500-4000 | 70-90% | D97=5-50 | 63-73 |
| GF400 | 2000-5000 | 70-90% | D97=5-50 | 97-120 |
| GF500 | 3000-6000 | 70-90% | D97=5-50 | 110-130 |
| GF600 | 4000-8000 | 70-90% | D97=5-50 | 140-169 |
| GF800 | 6000-12000 | 70-90% | D97=5-50 | 170-210 |
| GF1200 | 8000-200000 | 70-90% | D97=5-50 | 230-380 |
4. Technical Features:
1,The classifier used within the ceramic protection, less equipment wear,no pollution,high purity.
2,classifier structure is designed,almost by all large particles, high grading precision,large granular control.
3,classification by grading impeller speed and fan free to adjust the air volume, in order to obtain the required product, grading range.
4,adopts low speed vertical single impeller hierarchical structure , material flow is stable, equipment processing capacity,high classification effciency.
5,using multi-stage structure,at the same time granularity classification of several products,the particle size distribution to obtain the ideal.(For details, please contact me:Annie Chang,Mob:0086-18678029069(whatsapp),E-mail: Annieflower.chang dot )
5. Product Details
1.Higher Capacity
Special designed for coarse final product with higher capacity. Secondary air design improves the classifying efficiency.
2.Higher Hardness Material
Inside are easy for wear-resistant with kind of material, which can be suitable for material with higher hardness.
3.Higher Flexible Design
According to customers' workshop height, the motor driven way can be direct or belt. Inlet also can from top or from bottom.
4.(For details, please contact me:Annie Chang,Mob:0086-18678029069(whatsapp),E-mail: Annieflower.chang dot )
6. Customer Case
7. Application
Pre-sales Service:
The wide product range enables us to provide our customers with individual machines or complete processing plants. Based on our customers’ request and budget, our experts make efficient, reliablesolutions, and we produce strictly follow customers’ order. What’s more, every customer has the chance to visit the working machine in the site before placing the order.
Most of the visiting foreign customers feel inconvenient for the first time. Due to this condition, we help to arrange cars, hotels, and translators for every visiting customer.
After-sales Service:
Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers’ plants. Necessary training about machine daily maintenance to local workers is provided also.
After-Sales department is made of well-trained employees, and installation engineers. The installation technicians are special and professional team of SBM; they are now strategically located home and abroad, working for our customers
.
How can I contact to you?
You can contact us by e-mail on alibaba or whatsapp +86 18678029069(13356713809)
.
We could make whole production line or single equipment following different clients requirements.
For whole process as below:
Firstly, Please offer detailed technical drawing in CAD or requirements. Secondly, we will offer different technical proposals follwing offered drawings or requirements for clients. Thridly make decision for which proposal.At last manufacture whole equirements following techncial proposal and holding test in warehouse. Finally finished equipment/prodcution line offered as turn-key project.
For details, please contact :
Annie Chang ,Mob: +8618678029069(WhatsApp/wechat)
Skype:anna1983cyj ,QQ:896247401
Email:annieflower.chang at
website: /
If you have any questions, pls don't hesitated to contacting me anytime.
