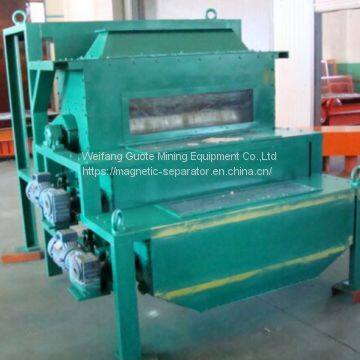

GCT-F-8 dry roller type permanent magnetic separator

FOB Price

US$ 6000 - 8900 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	GUOTE	Place of Origin	China
Model Number	GCT-F-8	Type	Magnetic Separator
Certification	ISO9001	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	12months	Weight	1000kg
Dimension(LWH)	120012001380	Production Capacity	1-3TPH
Voltage	380/440	Condition	New
Power(W)	3kw

Exquisite craftsmanship dry magnetic drum separator manufacturer

Product Description

1 It is used for ceramics, glass, refractories, abrasives and other non-metallic mineral

2 It's apply to purification of chemical, food, medicine and purification, hematite,limonite and manganese.

Technical characteristics

Cylinder and roller reasonablely combined, iron removal more efficient.
Cylinder with new type permanent magnet ,magnetic field more stronger, suction more stronger
Drum magnetic system can be turning block type, efficient more higher
Surface magnet field up to 8000GS
Cylinder and roller's speed is variable frequency regulation
Magnetic roller adopted polymer composite magnetic system,magnetic field up to 15000GS, higher gradient
Belt made with special materials, high wear resistance
Controllable feeding system ensure the uniformity of material when it go through magnetic field
Selfclean weakly magnetic oxide,longlife work
Dust discharged only by dust collector, so it can meet the environmental protection requirements

Thenical parameter

ITEM	Magnetic roller length(mm)	Magnetic field intensity(GS)	cylinder magnetic field intensity(GS)	Belt thickness(mm)	Material size(μm)	Capacity(t/h)	Power(KW)
MODEL							Cylinder drive	roller drive
GCT/F3-I	300	1500-2000	4000-10000	0.1-2	83-5000	0.4-0.6	0.75*2	0.55*1
GCT/F3-II								0.55*2
GCT/F5-I	500	1500-2000	4000-10000	0.1-2	83-5000	0.8-1	0.75*2	0.55*1
GCT/F5-II								0.55*2
GCT/F8-I	800	1500-2000	4000-10000	0.1-2	83-5000	1.2-2	1.1*2	0.55*1
GCT/F8-II								0.55*2
GCT/F10-I	1000	1500-2000	4000-10000	0.1-2	83-5000	2-3.5	1.5*2	0.55*1
GCT/F10-II								0.55*2
GCT/F12-I	1200	1500-2000	4000-10000	0.1-2	83-5000	4-7	2.2*2	0.55*1
GCT/F12-II								0.55*2
GCT/F15-I	1500	1500-2000	4000-10000	0.1-2	83-5000	7-10	3*2	0.55*1
GCT/F15-II								0.55*2
