Motor Protection Circuit Breaker,140M-C2E-B25,1.6-2.5A

Motor Protection Circuit Breakers

Designed to be used in conjunction with the Allen Bradley 100-C contactor range to provide type 2 co-ordination without oversizing of the contactor, in rating up to 22kW. The breaker may be customised to suit individual requirements.

Trip Class 10
Short circuit indicator provides a differentiation between short circuit and overload tripping
Phase Loss protection
Jump mechanism ensures fast closing or opening of contacts
'ON', 'OFF', 'TRIP' indication

Lockable in OFF position, emergency OFF switch
Adjustable thermal release with mechanical reset
Ambient temperature compensation (-20 to +60°C)
Front mounting trip/auxiliary contacts
Magnetic release 13 x thermal overload trip current max
Disconnector approval to IEC947-2
Main Switch/Emergency Off approval to IEC204-1

140M-C2E-A16     0.1-0.16A

140M-C2E-A25     0.16-0.25A

140M-C2E-A40     0.25-0.4A

140M-C2E-A63     0.4-0.63A

140M-C2E-A63-KN

140M-C2E-A63-KY

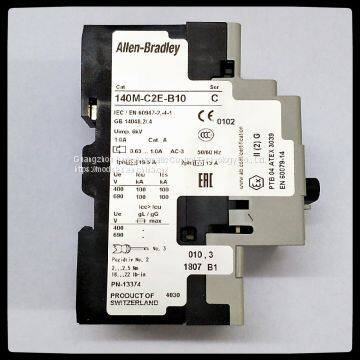

140M-C2E-B10    0.63-1.0A

140M-C2E-B10-CX

140M-C2E-B10-KN

140M-C2E-B10-KY

140M-C2E-B16    1.0-1.6A

140M-C2E-B16-CX

140M-C2E-B25    1.6-2.5A

140M-C2E-B25-CC

140M-C2E-B25-KN

140M-C2E-B40    2.5-4.0A

140M-C2E-B40-CC

140M-C2E-B40-CX

140M-C2E-B40-KN

140M-C2E-B63    4.0-6.3A

140M-C2E-B63-EK

140M-C2E-B63-GF

140M-C2E-C10    6.3-10A

140M-C2E-C10-XC

140M-C2E-C16    10-16A

140M-C2E-C16-CX

140M-C2E-C16-KY

140M-C2E-C16-MT

140M-C2E-C20    15.5-20A

140M-C2E-C20-CX

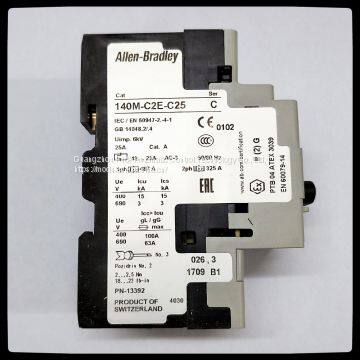

140M-C2E-C25    18-25A

140M-C2E-C25-CX

140M-C2E-C29

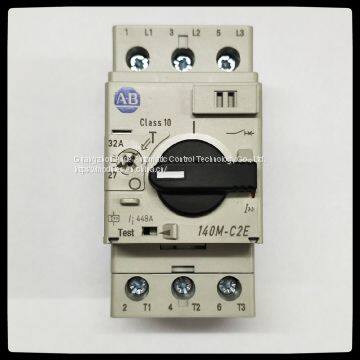

140M-C2E-C32    27-32A
