Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | BXZ-2L | Type | Core Drilling Rig | |
| After-sales Service Provided | Engineers available to service machinery overseas | Power Type | Diesel | |
| Usage | Coal | Condition | New | |
| Power(W) | diesel engine |
Product Description
1.A brief introduction of the BXZ-2L vertical backpack drill rig

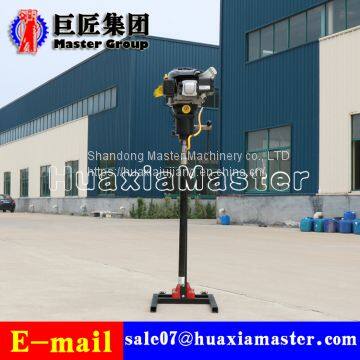

BXZ-2L Vertical knapsack Core rig is a removable core sample drilling rig, mainly used in mineral exploration, geochemical exploration, shallow sampling, geoscience research, geotechnical engineering, engineering investigation, oil field exploration, Water conservancy engineering survey, highway engineering survey and so on.
The main features of BXZ-2L vertical backpack core drilling machine are compact structure, detachable, small volume, light weight, easy to carry; imported Kohler brand gasoline engine with large horsepower and guaranteed drilling depth; with drilling frame, field operation is more convenient and safe.
2. Technical parameters of BXZ-2L Vertical backpack drill rig
Project | Parameter |
Power brand | Kohler |
Motive power | 7.75HP |
Fuel tank volume | 1400ml |
Driving mode | gear drive |
Starting mode | Pull rope start |
Clutch mode | Automatic clutch |
Core mode | rotary |
End hole speed | 540r/min |
Gear ratio | 7:1 |
Driving mode | infinitely variable speeds |
Drill pipe size | 32*800mm |
Drill pipe size | 30m |
Diameter | 32~120mm |
Mainframe net weight | 52kg |
Mainframe net size | 550*450*420mm |
Packing measurement | 1050*600*550mm |
3.The packing list of BXZ-2L vertical backpack drill rig
Project name | Specification | Unit | Number |
Drill rig | BXZ-2L | set | 1 |
Drilling rod (drilling joint) | 32*800 | root | 38 |
Head | 46 | pcs | 1 |
Core tube | 46*700 | root | 1 |
Alloy bit | 46 | pcs | 1 |
Diamond bit | 46 | pcs | 1 |
Head | 60 | pcs | 1 |
Core pipe | 60*700 | root | 1 |
Alloy bit | 60 | pcs | 1 |
Diamond bit | 60 | pcs | 1 |
Gasoline high pressure pump | set | 1 | |
Water suction pipe | 20*1000 | root | 1 |
Water absorbing filter | pcs | 1 | |
Backwater pipe | 13*1000 | root | 1 |
Supply pipe | 13*4500 | root | 1 |
Pipe pliers | grasp | 2 | |
U-fork | grasp | 1 | |
UL-fork | grasp | 2 | |
Well head plate | pcs | 1 | |
Sparking plug | pcs | 1 | |
Nozzle washer | set | 1 | |
Water block | set | 1 |
