Eddystone & iBeacon Indoor Localization iBeacon Sensor Minew C7

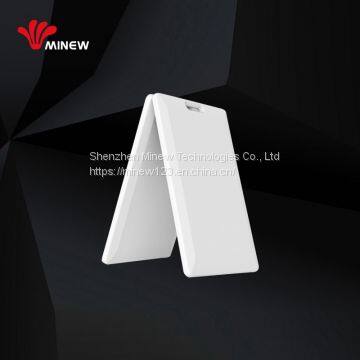

The Card Beacon C7 is a new generation beacon that loaded Bluetooth 5.0 hardware platform, hidden push button, 3-axis accelerometer and MiniBeacon Plus intelligence software. The push button can be used to the panic / emergency / SOS button.

C7 card beacon advertises standard iBeacon, Eddystone (UID,URL,TLM) and accelerometer sensor data simultaneously. The user can configure the C7 card beacon via configuration app BeaconSET+ as well.

Moreover, C7 card beacon with accelerometer advertises sensor data ONLY when an object (C7 attached) is moving or after an object has fallen.

FEATURE

- Advertising iBeacon & Eddystone & Sensor data

- Unique MAC address (ITU)

- Bluetooth 5.0 chipset nRF52 series

- The max. 100 meters advertising distance

- Waterproof IP65 housing with key-chain hole

- Push button for emergency using

APPLICATION

- Asset tracking and location

- Personnel tracking

- Activity monitoring

- Inventory tracking

ACCESSORY

- Double side adhesive tape

 CONFIGURATION TOOL

- BeaconSET+ (IOS & Android), the card beacon C7 can be turned off only by app BeaconSET+;

ACTIVATE C7- Pressing “power button” and keeping on 3 seconds;

- The LED lights on 5 seconds then off, the card beacon C7 has been activated on;
