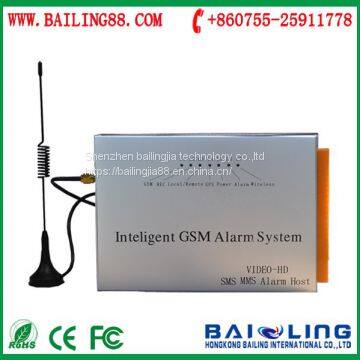

Industrial GSM GPS SMS Call 315 / 433 MHz Auto Dial Securtiy Alarm System with Magnetic Antenna BL-5000

1, 8 wired guarding zones for connecting wired sensors, 1 x relay outputs, Can control home appliances remotely through the relay output.

2, 50 Wireless guarding zones, wireless alarm sensors inputs(315MHZ or 433MHZ)

3, Digital inputs are adopted optical-coupled isolators, which can prevent external high voltage from destroying internal.

4, arm/disarm and program the system by control keyboard on the mainframe & phone & SMS & Remote controller

5, arm/disarm by control SMS

6, SMS of each zone (8 wired zones, 50 wireless zones) can be edited independently

7, SMS 5 phones automatically while alarming

8, Call 5 phones automatically while alarming and drive wiretap, can clearly hear the voice on the scene.

9, record function: Maximum recording time:1 minute

10, voice function:support play the user record voice.

11,support Mic and interphone.

12,Prompt for whole operation guidance, automatic prompt for host status and alarm by SMS

13.Modify zone content and inquire status of alarm host by SMS demand.

14.with magnetic Antenna with strong signal

15.with standby rechargeable battery. The host automatically stores system status, while its power is off.

16.Adopts wireless signal transmission, no need to connect to wire and easy for installation.

17.tamper device: Arming while the control panel removing or shaking.

18.It can connect with alarm center, which is made up by GSM alarm module, alarm center software and computer.

1,GSM  frequency: 850/900/1800/1900MHZ

2, Working frequency between detector and alarm host(315M/433M  optional) Wireless distance :100-200m(without obstacles)

3, Alarm response time≤8S(GSM in normality)

4,50 Wireless guarding zones;

5,Working conditions Operating temperature: -45~+60°C      Humidity: ≤95%

   standby current:5mA       alarm current: <500mA

6,standby power:<0.3W      Standby power consumption: 0.9W

7, Power adpater: :AC100- 240V  50Hz/60Hz.   DC output: DC12V / 2A backup battery:DC7.4V/1200mA

8, Dimension: 188mm(Long)×120mm(Wide)×28mm(High)
