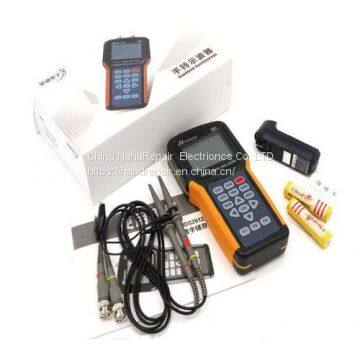

Jinhan JDS2022A Digital Oscilloscope Double-channel 20MHz Multimeter

Jinhan JDS2022A Digital Oscilloscope Double-channel 20MHz Multimeter

Input

Input coupling                     AC, DC
Channel                               2
Display mode                       X-Y; Y-T
The input impedance               1MΩ 25pF
The maximum input voltage      40V(Probe X1); 400V(Probe X1); 2000V(Probe X100)
Probe attenuation                    1X, 10X
Attenuation setting                  1X, 10X, 100X

Signal acquisition system

Sampling method                    Real time sampling, random sampling
The storage depth                  4K(2K per channel)
Acquisition mode                   Sampling, peak detect

Vertical system

Vertical sensitivity                10mV-5V(Probe 1X)100mV-50V(Probe 10X) (1, 2.5, 5 Stepping)
The vertical accuracy               +/-3%
The vertical resolution             8bit
Bandwidth                           20MHz

Horizontal system

The real-time sampling rate     200 MSa/s  per channel
Horizontal scanning range        10nS/div-5S/div

Triggering system

Mode                                   Automatic, normal and single
Type                                   The rising edge, falling edge
Automatic detection                    Support(50Hz-40MHz)
Mathematical operation                 CH1+CH2, CH1-CH2, CH2-CH1

Measurement system

Cursor measurement                    Support time and voltage
Measuring method                      Manual
Measurement                           The peak to peak value and frequency

Equipment

Screen                                3.2 inch,16 bit true color, TFT, 320*240
Battery                               2000+mA Lithium battery (support 5 hours of continuous work)(not include)
Size                                  202*100*35(mm)
