Autool SDT-202 Smoke Leak Detector SDT 202 Automotive Leak Locator

Autool SDT-202 Smoke Leak Detector SDT 202 Automotive Leak Locator

SDT-202 is designed for detecting the leakage of pipe systems on cars, motorcycles, such as fuel pipe, air intake system and cooling

tank.  SDT-202is for all pipe systems except EVAP.

Cautions:

1. When you use this detector the first time, please fill 20-30ml  oil, not beyond this range.
2. New oil can be filled with only when the smoke is light,and it  can`t be filled over 15ml every time.
3. Before filling new oil, please pour out the remaining oil in the  detector.
4. Please replace the detector oil regularly.

Product Information:

Power: DC12V, vehicle battery
Smoke output value: 6l/min
Built-in air supply

How to Use:

1. Open the engine cover, and hang the detector in the cover.
2. Disconnect the pipe that needs to be connected with detector. If the pipe needs to be disconnected in the middle. Please secure the other side with a rubber stopple.
3. Secure this side with proper taper stopple/pipe, and connect it with smoke output tube.
4. Connect detector with DC12V battery: red with positive, black with negative. Do not connect in a contrary way.
5. Turn on the power switch, and detector starts to work.
6. In about 3 minutes, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.
7. After leak detection, please connect well the wires and pipe.

Notes:

Please do leak detection away from smoke-sensitive parts.
Not suitable for EVAP.
Do not run the detector over 8 minutes. It needs interval rest.
The detector has protector. If it exceeds working limit, it will power off automatically. In this condition, please operate it later.
The round parts of this detector is with temperature, be careful to avoid scalding injury.

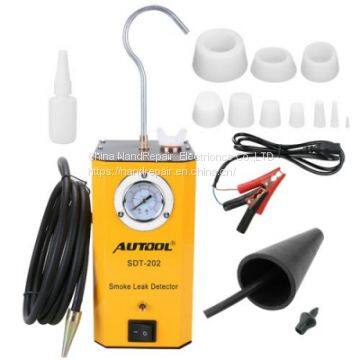

Package List:

1. Main Unit
2. Hook
3. Rubber stopples
4. Taper stopple
5. Taper pipe
6. 30ml oil bottle
7. User manual
