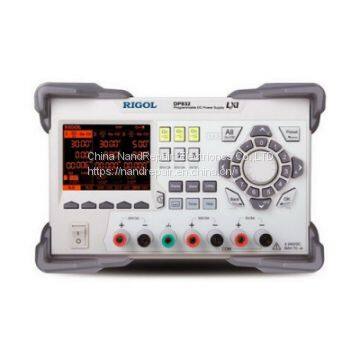

Rigol DP832 Programmable Linear DC Power Supply 3 Channels

Rigol DP832 Programmable Linear DC Power Supply 3 Channels

The DP800 Series Power Supplies combine the ability to source, analyze, and coordinate over time in a powerful new package. The DP800 Series is a family of linear power supplies systems with 1, 2, or 3 outputs and up to 200 Watts in total. With one channel isolated users can reconfigure instruments into any number of systems or applications. Built in V, A, and W measurements make power monitoring easy, but additional wave tracking, timing, and analysis features in the advanced A series supplies means there are even more ways to use the instruments. New digital triggering between instruments also makes it possible to reliably combine and connect supplies together. Intuitive to use for everything from education labs to the R & D bench, the DP800 family of power supplies provide incredible value for any application. Select the value models for best price performance or upgrade to the A model to improve resolution and add advanced monitoring, triggering, and programming capabilities.

Rigol DP832 Features:

3 Outputs; total power up to 195W
Low Ripple Noise<350 uVrms/2mVpp
Fast transient response time:<50 us
Channel isolation: CH1 || CH2,CH3
OVP/OCP/OTP protection functions
Built in V, A, W measurements and waveform display
Support for output Delay, Analysis, Monitor, and Preset function
3.5 inch TFT Display
Connectivity including USB Host & Device, LAN, and Digital IO
Low Ripple and Noise:<350uVrms / 2mVpp


Timing output

When the timer is enabled, the instrument outputs the preset voltage and current values (at most 2048 groups). Users can set the number of output groups of the timer as well as the voltage, current and timing time of each group.

V/A/W Display

Built-in V, A, W measurements and waveform display

Output Analysis, Monitor

Support more advanced functions: recorder, analyzer, monitor and trigger.

Large screen display with 3.5' LCD

Support 4 display modes: normal, waveform, dial and classic.
