MPPT epsolar charge controller tracer Tracer 1210AN Tracer 2210AN Tracer 3210AN Tracer 4210AN
- Shenzhen
- T/T PayPal Other
- 3 days
You May Like
Product Details
| Place of Origin | China | Application | Charger Controller | |
| Rated Voltage | Other, 12v 24v | Maximum Current | 60a |
Product Description
Item | Tracer 1210AN | Tracer 2210AN | Tracer 3210AN | Tracer 4210AN |
Nominal system voltage | Nominal system voltage | |||
Nominal system voltage | 10A | 20A | 30A | 40A |
Rated discharge current | 10A | 20A | 30A | 40A |
Battery voltage range | 9V~32V | |||
MPP Voltage range | VBAT +2V~90V | |||
Max. PV VOC | 100V | |||
Max. PV input power | 130W/12V 260W/24V | 260W/12V 520W/24V | 390W/12V 800W/24V | 520W/12V 1040W/24V |
Self-consumption | <20mA(12V) <16mA(24V) | |||
Temperature compensate coefficient | -3mV/°C/2V(Default) | |||
Communication | RS485(RJ45 interface) | |||
LCD temperature range | -20°C~+70°C | |||
Ambient temperature range | -25°C~+45°C | |||
Storage temperature range | -35°C~+80°C | |||
Humidity range | ≤95% (N.C.) | |||
Enclosure | IP30 | |||
Dimension | 172mmx139mmx44mm | 172mmx139mmx44mm | 228mmx164mmx55mm | 252mmx180mmx63mm |
Mounting dimension | 130mmx130mm | 130mmx130mm | 170mmx164mm | 210mmx171mm |
Power cable | 4mm2 | 10mm2 | 10mm2 | 10mm2 |
Weight | 0.6kg | 1.1kg | 1.2kg | 1.9kg |

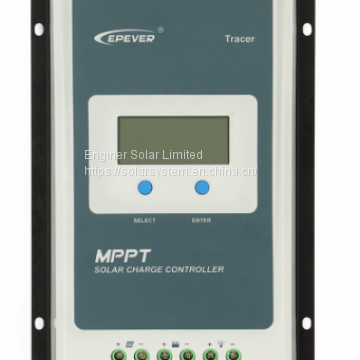

Picture |
|
|
|
|
