Home > Products > Pickling Line > Push-pull pickling line

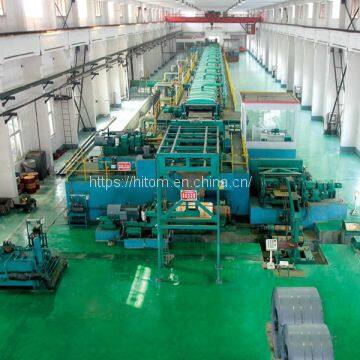

Push-pull pickling line
- 200 Set / Sets per Month
- Shanghai
- 4 days
You May Like
-
Metal Broom Handle Tube Production Line
-
Round/Square/Rectangle Hollow Section Pipe Profile Shape Making Line
-
100x100x4mm Square Welded Pipe Profile Making Equipment
-
Factory Price Welding Steel Pipe Production Line Round Tube Making Machine
-
ERW Tube Mill Line Precision Round Steel Tube Making Machine
-
High Efficiency Power Saving Welded GI Galvanized Steel Tube Production Line
Product Details
Brand Name | TG | Place of Origin | China | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1. Description:
Push-pull pickling line, higher quality, simply operation, good applicability
Low consumption and fewer faults, so it is very fit for medium and small cold rolling plant
The Push-pull pickling line capacity is among 100,000~600,000 tons annually.
It can acid washing many kinds of incoming material
2. Push-pull pickling line technology parameter:
Process method: push-pull shallow slot turbulence hydrochloric acid
Pickling medium: hydrochloric acid (≥31%)
Pickling density: 8~18%
Pickling time: minimum: 25-30s
Pickling temperature: 65~85°C
Acid density: Max 200 g/L HCl 120g/LFe2
Driven way: SIEMENS AC frequency control system in main driving
3. Data
Following is the data for push-pull pickling hot rolled strip with the annual output of 400,000 tons
Acid medium | Annual output | Strip thickness | Strip width | Coil Weight | Line speed |
HCL | 100,000-600,000tons | 1.2-6.0mm | 450-1630mm | Max 35tons | 40-180m/min |
4. Process Flow of Push-pull pickling line:
Pre-uncoiling station:
Loading platform → entry coil car → pay-off reel → pinch straightener → comer shear → shear pickling unit
Pickling line:
Manually loading → pay-off reel → pinch straightener → entry shear → riveter pinch roll→ back washing → pickling → water washing → drying → looper →disc shear → exit shear → electrostatic oiling → recoiler → manually unloading
