Home > Products > PXB-50 > Hot on Sale High Speed Automation 500ml Plastic Bottle Blow Molding Machine Price

Hot on Sale High Speed Automation 500ml Plastic Bottle Blow Molding Machine Price

FOB Price

US$ 25000 - 32500 / Piece

1 Piece(Min. Order)

Port shanghai port
Payment TermsT/T L/C
Delivery Detail60 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	KINGGLE	Place of Origin	China
Model Number	PXB-50	Certification	CE ISO
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	1 years
Weight	3.0 T	Dimension(LWH)	3.1x1.6x2.4 M
Application	Other, 500ml bottle	Condition	New
Power(W)	22 KW	Automatic	Yes
Blow Moulding Type	Extrusion Blow Moulding	Plastic Processed	PE

Product Description

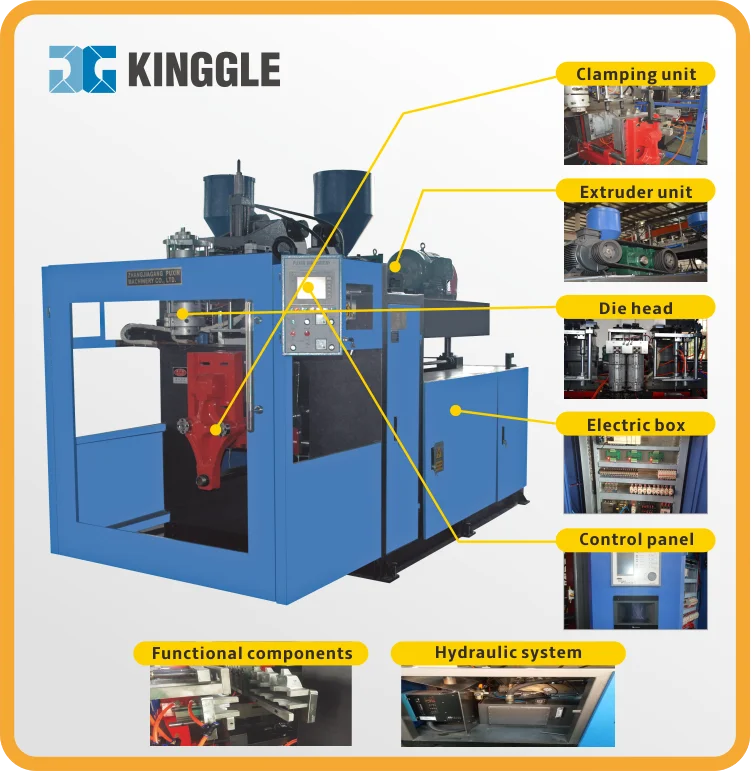

This series is single station mold-moving machine, high efficiency and stability, suitable for making max 2L containers in small batch production. It adopts central-incoming extrusion die head which can be divided into single layer, double layer and transparent line type.

Die head: Special steel and centre feed extrusion die head;

Extruder unit: adopt automatic temperature control unit of import,the screw united by

frequency motor,hard tooth surface gear box to achieve stepless speed regulation;

Clampling device: Across the basement type double linear guide and move mould

strengthen rigidity. Template is three bar with center clamping system

Hydraulic system: whole system adopt imported components, proportional control flow,

Fast response, more stable, power consumption without loss;

Electric controlling system: it adopts Japan programmable controller, touch

screen,the characteristic of it has direct manipulation and large information on board.

Control System

Technology

Specifications	Unit	Double station
Machiner model		PXB50
Material		PE,PP,PVC,PA etc.
Max container capacity	L	2
Number of die head	SET	1,2,3,4
Machine dimension ( L×W×H )	M	3.1×1.7×2.5
Machine Weight	T	3.6
Clamping unit
Mold platen size ( W×H )	MM	300×380
Max mold size ( W×H )	MM	300×350
Platen opening storke	MM	130-370
Power
Oil pump driving total power	KW	5.5
Max driving total power	KW	16.5
Average energy consumption	KW	11-14
Blow pressure	Mpa	0.6
Extruder unit
Screw diameter	MM	50
Screw L/D ratio	L/D	24:1
Melting capacit for HDPE	KG/HR	35
Extruder power	KW	11
Die head
Max die-pin diameter	MM	95
Center distance of double die head	MM	130
Center distance of three die head	MM	110
Center distance of four die head	MM	75

Suit product

Other Product types

Our Services

The warranty period for Kinggle machine is one year with a life long maintenance.

If the user requires special quality guarantee, other stipulated warranty period may be made after

mutual agreement.

1. Reply the email and take action in 24 hours;
2. 100% Quality inspection before the shipment;
3. Can trainning clients operator for free in seller`s factory
4. Engineer overseas is avilable
5. Blowing mould and injection mould made orginal
6. Auxiliary machines for complate line.
7.Custimized design as requirements.
8. Introduce our engineer come to customer’s factory working!

1. Reply the email and take action in 24 hours;

2. 100% Quality inspection before the shipment;

3. Can trainning clients operator for free in seller`s factory

4. Engineer overseas is avilable

5. Blowing mould and injection mould made orginal

6. Auxiliary machines for complate line.

7.Custimized design as requirements.

8. Introduce our engineer come to customer’s factory working!

Packaging & Shipping

Customer/ Exhibiton

Certifications

FAQ

[1] Q: Are you a factory or trading company?

A: We are a factory.

[2] Q: Where is your factory located?

A: Our factory,near Shanghai & Ningbo port, Ningbo ,zhejiang .

[3] Q: How about quality control in your factory?

A: “ Quality is the key point, do what customers need”

Kinggle machinery factory focuses on quality,quality control from beginning to the end. Every piece of goods

is tested strictly before packing and delivery.

[4] Q: How about guarantee ?

A: One year guarantee.

[5] Q: Do you provide blow molding machine ,mold and auxiliaries equipments?
A: Yes , we can provide full blow molding machine line ,before and after sales service

[6] Q: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English,or other languages to make sure you will have an easy operation .

[7] Q: Can you offer big size blow molding machine? Can you make multilayers and multi-colors?
A: Yes,we can offer you up to 2000L blow molding machine,our factory have patent for the multilayers and multi-colors!
