Pharmaceutical Lab Tablet Dissolution Tester Apparatus

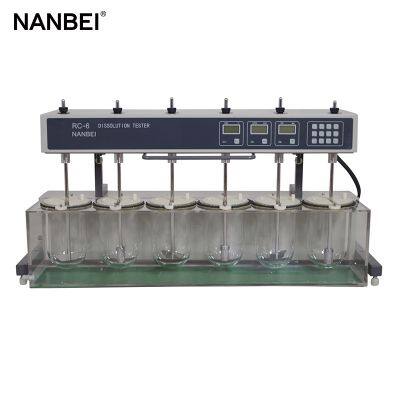

RC-6 dissolution tester
Application
RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.
Applicable standards
National standard( Chinese codex ) /2010
Corporate standard(Dissolution tester )Q/12XQ0187-2010
Features
1 It has six vessels and six poles arranged on one line.
2 The head moves up/down automatically.
3 The basket units and paddle units are made of imported stainless steel (SUS316L).
4 The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
5 A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
6 It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
7 Automation: auto-test, auto-diagnose, auto-alarm.
8 It can test by self and alarm automatically. The dissolution parameters of' Chinese codex 2010' are stored in and can be taken out at anytime.
9 Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.

Specifications
Speed range (20~200)rpm
Speed accuracy ±2rpm
Temperature range ambient to +45.0oC
Temperature Stability ±0.3oC
Preset timing nine points (1~999)min
Time accuracy ±0.5mm
Paddle radial run-out ±0.5mm
Basket radial run-out ±1.0mm
Power 220V/50Hz/1200W or 110V/60Hz/1200W
Dimension (960*400*480)mm3

Model comparison
