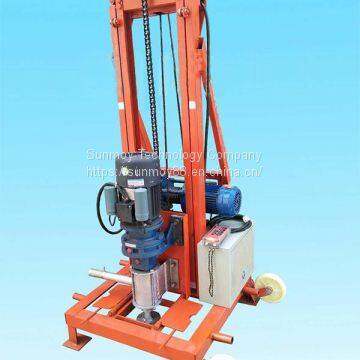

S200D 220V Portable Water well Drilling Rig
- SHANGHAI
- T/T L/C PayPal Other
- 7 days
You May Like
Product Details
| Brand Name | SUNMOY | Place of Origin | China | |
| Model Number | S200D | Type | Core Drilling Rig | |
| Certification | CE | After-sales Service Provided | No overseas service provided | |
| Warranty | 2 year | Weight | 450KGS | |
| Power Type | Diesel | Usage | Water Well | |
| Condition | New |
Product Description
Main features:
Light weight & folding design, convenient to carry and keep.
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer;
5. One person operation, reduce the labor intensity;
6. High efficiency and work fast.
7. Assure easily operation and long life service life, free maintenance
Model: | S200D-40 | S200D-50 | S200D-60 | S200D-80 |
Max Well Diameter: | 200mm | 200mm | 200mm | 200mm |
Max Depth: | 40m | 50m | 60m | 80m |
Working Voltage: | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ |
Drilling pipe length: | 1500mm | 1500mm | 1500mm | 1500mm |
Drilling pipe diameter: | 42mm | 42mm | 42mm | 42mm |
Driving mode: | 1-phase asynchronous motor | |||
Rod change method | Full automatic screw thread | |||
Drilling method: | Percussive and rotating type | |||
Drillingmachineoveralldimension: | 700*700*2500mm | |||
