Home > Products > lathe machine > CK6140 automatic cnc lathe price

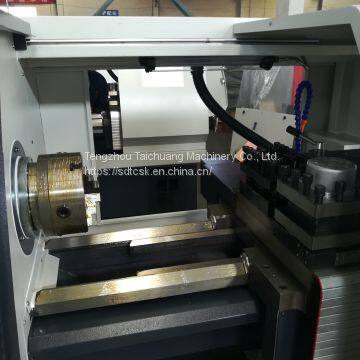

CK6140 automatic cnc lathe price
- 1 Set / Sets per Month
- qingdao port
- T/T L/C D/P D/A Credit Card PayPal Other Cash
- 30 days
You May Like
Product Details
| Brand Name | taichuang | Place of Origin | China | |
| Model Number | ck6140 | Type | Horizontal | |
| Certification | CE ISO | After-sales Service Provided | Engineers available to service machinery overseas | |
| Weight | 1800kg | Dimension(L*W*H) | 2200*1160*1620mm | |
| Voltage | Customer's Requirement | Condition | New | |
| Power(W) | 7.5kw | Automatic Grade | Automatic | |
| CNC or Not | CNC | Max. Swing Diameter | 400mm |
Product Description
The lathe has wide processing object, large adjustment range of spindle speed and feed, and can process the inner and outer surface, end face and internal and external thread of the workpiece. This kind of lathe is mainly operated by workers and has low production efficiency.
It is suitable for single piece, small batch production and repair workshop.
CK6140 | |
Max. swing over bed | 400mm |
Max. swing over cross slide | 250mm |
Max. turning length | Chuck600 mm / collet 700 mm |
Spindle bore | 48/83mm |
Max. diameter of the bar | 41/65mm |
Spindle speed | 150-1800 |
Spindle nose | A2-6/A2-8 |
Spindle motor power | 5.5/7.5kw |
X/Z axis position accuracy | 0.01/0.015mm |
X/Z axis repeatability | 0.012/0.013mm |
X/Z axis motor torque | 4/6 N.m |
X/Z axis motor power | 1/1.5kw |
X/Z axis rapid speed m/min | 8/10 |
Tool post type | 4/6 tool electric turret |
Tool bar section | 20*20mm |
Tailstock sleeve dia. | 60mm |
Tailstock sleeve travel | 100mm |
Tailstock taper | MT4 |
N.W. | 1800kg |
Machine dimension (L*W*H) | 2200*1100*162 |
Tengzhou Tai Chuang Machinery Co., Ltd. is a production enterprise specializing in the production of many series of products, such as lathe, milling machine, drilling machine and so on. There are more than 100 employees, including 6 senior engineers and 43 technicians.
The main products are: CNC lathe, CNC milling machine, machining center, lathe, milling machine, drilling machine.
Hot-sale product
A: We are factory.
Q:Can you provide customized machine or SPM (Special purpose machine)?
A:Yes, We can customize machines according to customer requirements.
Q:What's your warranty terms?
A: We will supply a replacement for parts that prove to be defective for a period
of 12 months, starting on the machine’s bill of lading date.
Q: How long is your delivery time?
A: Normally the delivery time is about 20-30 working days. All our machines are
packed with sea worthy package.
Q: What is your terms of payment ?
A: 30 percent of the payment in advance, pay full payment before delivery.
