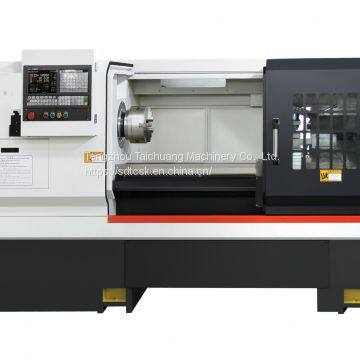

mini cnc lathe machine tool CK6150 cnc machine
- 1 Set / Sets per Month
- qingdao port
- T/T L/C D/P D/A Credit Card PayPal Other Cash
- 20 days
You May Like
Product Details
| Brand Name | taichuang | Place of Origin | China | |
| Model Number | ck6150 | Type | Horizontal | |
| Certification | CE ISO | After-sales Service Provided | Engineers available to service machinery overseas | |
| Weight | 2850kg | Dimension(L*W*H) | 2950*1520*1750mm | |
| Voltage | Customer's Requirement | Condition | New | |
| Power(W) | 7.5kw | Automatic Grade | Automatic | |
| CNC or Not | CNC | Max. Swing Diameter | 500mm |
Product Description
Model:mini cnc lathe machine tool CK6150 cnc machine
Main technical parameter
cnc lathe | CK6150 | |
Capability | Max. swing dia. over bed | 500mm |
Max. swing dia. over cross slide | 250mm | |
Max. cutting dia. | 500mm | |
Max. processing length | 850mm/1500mm | |
Spindle | spindle bore | 130mm |
Spindle taper | MT6# | |
Spindle speed | 1800rpm | |
Spindle nose | A2-8/11 | |
Main motor power | 7.5Kw | |
X/Z axis | X/Z travel | 300/900 1600mm |
X/Z mini setting unite | 0.001mm | |
X/Z motor torque | 4/6N.m | |
X/Z repeatability | 0.005/0.005mm | |
X/Z position accuracy | 0.006/0.006 m/min | |
Tailstock | Tailstock sleeve dia. | 75mm |
Tailstock sleeve travel | 200mm | |
Tailstock taper | MT5# | |
Tool holder | Type | 4-position electric type |
Tool bar size | 25*25mm | |
Tool holder repeatability | 0.004 | |
Dimension | 2950*1520*1750mm | |
Net weight | 2850kg | |
Tengzhou Taichuang Machinery Co., Ltd. is a production enterprise specializing in the production of many series of products, such as lathe, milling machine, drilling machine
and so on. There are more than 100 employees, including 6 senior engineers and 43 technicians.
The main products are: CNC lathe, CNC milling machine, machining center, lathe, milling machine, drilling machine.
Hot-sale product
A: We are factory.
Q:Can you provide customized machine or SPM (Special purpose machine)?
A:Yes, We can customize machines according to customer requirements.
Q:What's your warranty terms?
A: We will supply a replacement for parts that prove to be defective for a period
of 12 months, starting on the machine’s bill of lading date.
Q: How long is your delivery time?
A: Normally the delivery time is about 20-30 working days. All our machines are
packed with sea worthy package.
Q: What is your terms of payment ?
A: 30 percent of the payment in advance, pay full payment before delivery.
