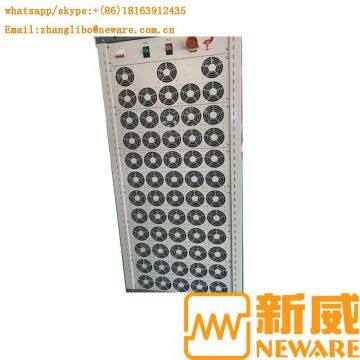

Neware 5V200A Electric Vehicle Batter Analyzer With Driving Schedules
- shenzhen
- T/T
- 7 days
You May Like
-
Neware 5V200A Golf Car Battery Testing System
-
Neware CR1025 Coin Cells(button) Cycle Life Battery Test
-
17650 Cylindrical Battery Testing System
-
Neware Pounch Cells Capacity Tesing System
-
Neware EV Pack Constant Current Charge&discharge Battery Tester
-
Neware 0.05% High Precision Cycle Life Tester for Next Generation Battery Material Research
Product Details
| Brand Name | Neware | Place of Origin | China | |
| Model Number | CT-4008-5V200A-NA |
Product Description
NEWARE offers charge/discharge battery testing systems ranging from μA signal cell applications up to 300kw packs.
Application:
1,Coincell,cylindrical,prismatic,&flat cell testing.
2,Basic cycling,electrochemical experiment,and advanced real-world simulations.
3,Battery packs and modules of all sizes.
4,Any battery chemistry including lithium,silicon,sulfur,lead acid,nickel,&more.
Technical Specification:
| BTS-5V200A | Battery Testing System | |||||||||||||||
| Model: | BTS- | 5 | V | 200 | A | Material Code: | CT-4004 | -5V200A | - | NA | - | |||||
| Description | Product Specification | |||||||||||||||
| AC Input | AC 220V±10% 50Hz | |||||||||||||||
| Power | 7089 | W | ||||||||||||||
| Resolution | AD: 16bit; DA: 16bit | |||||||||||||||
| Impedance Input | ≥1MΩ | |||||||||||||||
| Voltage | Measuring Range | 25mV~5V | ||||||||||||||
| Discharge Min Voltage | 2.5V | |||||||||||||||
| Accuracy | ± 0.1% of FS | |||||||||||||||
| Stability | ± 0.1% of FS | |||||||||||||||
| Current | Range | Charge: 1000mA~200A Discharge: 1000mA~200A | ||||||||||||||
| Accuracy | ± 0.1% of FS | |||||||||||||||
| Stability | ± 0.1% of FS | |||||||||||||||
| Power | Output Power Per Channel | 1000W | ||||||||||||||
| Stability | ± 0.2% of FS | |||||||||||||||
| Time | Rise Time | 20ms (10%FS~90%FS) | ||||||||||||||
| StepTime | ≤ (365*24) hour/step | Time Format 00:00:00:000 (h:min:s:ms) | ||||||||||||||
| Data Acquisition | Intervals | Time interval Δt: (100ms~60000s) | ||||||||||||||
| Voltage interval ΔU: (10mV~5V) | ||||||||||||||||
| Current interval ΔI: (400mA~200A) | ||||||||||||||||
| Frequency | 10Hz | |||||||||||||||
| Charge | Modes of Operation | CCC, CVC, CC & CVC, CPC | ||||||||||||||
| End Conditions | Voltage, Current, Test Time, Capacity | |||||||||||||||
| Discharge | Modes of Operation | CCD, CPD, CRD | ||||||||||||||
| End Conditions | Voltage, Current, Test Time, Capacity | |||||||||||||||
| Pulse | Charge | CCC | ||||||||||||||
| Discharge | CCD | |||||||||||||||
| Minimum Pulse Width | 500ms | |||||||||||||||
| Automated Switch | Automated switch from charge to discharge for each pulse | |||||||||||||||
| End Condition | Voltage, Test Time | |||||||||||||||
| Cycle | Cycles | 65535 | ||||||||||||||
| Steps | 254 | |||||||||||||||
| Nested Function | Max three levels of loops | |||||||||||||||
| Protective Function | Power-off data protection | |||||||||||||||
| Off-line Operating | ||||||||||||||||
| User-defined safety (upper and lower) tolerance of current, voltage and delay time | ||||||||||||||||
| Reverse-connecting protection | ||||||||||||||||
| Channel Features | Independent pairs of closed loop for constant current source and constant voltage source | |||||||||||||||
| Channels | Independent control | |||||||||||||||
| Detection and Sampling | 4-wire Connecting | |||||||||||||||
| Noise Density | <85dB | |||||||||||||||
| Data Management | MYSQL Database | |||||||||||||||
| Communication Means | TCP/IP Protocol | |||||||||||||||
| Exports Formats | EXCEL, TXT, Graph | |||||||||||||||
| Communication Interface | Ethernet Port | |||||||||||||||
| Number of Channels Per Cabinet | 4 | |||||||||||||||
| Operating Environment | ||||||||||||||||
| Description | Product Specification | |||||||||||||||
| Operating Temperature | 0oC~40oC | |||||||||||||||
| Storage Temperature | -10oC~50oC | |||||||||||||||
| Operating Humidity | ≤70% RH | |||||||||||||||
| Storage Humidity | ≤80% RH | |||||||||||||||
Warraty: 1 year
Delivery: 7days after deposit
Contact information:
Emily Zhang
zhanglibo at neware.com.cn
