100 users finger touch pocket interactive whiteboard smartboard for schools and institutes

Product Description:

Laser Image Calibration Technology

Oway Finger touch portable interactive whiteboards includes with two parts: emitter and signal receiver. Emitter is fixed on flat surface. It emits infrared laser curtain on the surface which is about 1mm thick invisible light and parallel with the projection screen surface,1-2mm above the screen surface. When the fingers or any non-transparent objects touch this virtual surface,

the light will be reflected and detected by the signal receiver. Computer will figure out the position of the mouse by accurate calculating the reflected light position.

Finger touch portable Interactive Whiteboard system is a positioning system based on the latest laser infrared technology.

Use this system you can operate projector and computer easier and achieve more excellent presentation effects by finger.

Having finger touch Interactive whiteboard system means you not only have stronger functions than mouse, touch screen

and electronic whiteboard, more important you have the more Man-machine communication opportunities in the presentation:

Use “finger touch interactive whiteboard” you can almost neglect the projector , computer system, the operation fit the natural

communication custom. Use interactive whiteboard system will overcome the defects of the presenter’s just sit before the

computer which lacks of interactive communications.

Detailed Images:

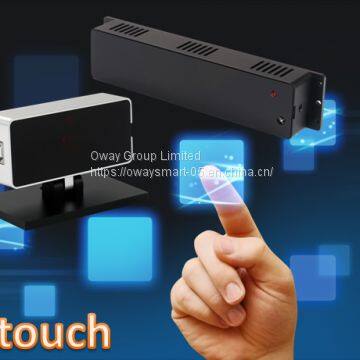

Finger Touch Portable Interactive Whiteboard – FT6

Calibration                         Automatic / Manual ( 4/15 point)
Multi-touch                        Ten points touch
Latency                             <20ms
Filter                                   Software auto-control, enhance stability.
Minimum Active Size         40 inch
Max Active Size                  120inch( no sunshine room);100inch( sunshine room)
Technology                          Laser Image Calibration Technology
Positional Accuracy            ±1 Pixel (Resolution: 4096*4096)
Aspect Ratio                        4:3;16:9;16:10
Projector ratio                     Long throw:3.0, installation distance:2.15~3.2M.
Laser Beam                         Short throw/ Long throw: 3units; Ultra short throw: 3units.
Laser safety                         CLASS I (safety laser)
Wave of the laser                 808nm
Power                                    5w
Power of Laser Beam          150mW/unit *3
Power requirements             5V/1.5A
Signal refresh rate                Real 60fps.
Connect                                The sensor and computer are connected by USB Cable; Emitter and Sensor are wireless;  Weight                                   0.5kg
OS Requirement                   Windows XP, Vista, Windows 7, Windows 8, Windows10
Software                                OwaySIWB
Certification                           CE, FCC, ROHS
Warranty                                2-year
Package                                1. Sensor  2.Emitter  3.Remote  4.USB cable (10m)  5.Pionter  6.Power Adaptor 7.Manual
