No-return Valve Control Electric 5l Rotary Evaporator
- QINGDAO
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
-
Chemical Distillation Equipment Mini Rotary Evaporator
-
5L Industrial Evaporator Mini Vacuum Rotary Evaporator
-
Multi-function Rotary Evaporator With Circulating Pump
-
Soft Serve Italian Gelato Commercial Ice Cream Making Machine
-
LCD Display 3 Type Flavor Instant Ice Cream Rolls Machine
-
3 Flavors Mini Vertical Instant Ice Cream Rolls Machine
Product Details
| Brand Name | NANBEI | Place of Origin | China | |
| Model Number | NBRE-2005 | Certification | CE ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 year | |
| Weight | 66KG | Dimension(L*W*H) | 765*400*1070mm | |
| Condition | New | Voltage | 220/110V 50/60HZ | |
| Application | Distillation | Power(W) | 2.2KW | |
| Power Source | Electric | Process | Other, rotary evaporator |
Product Description

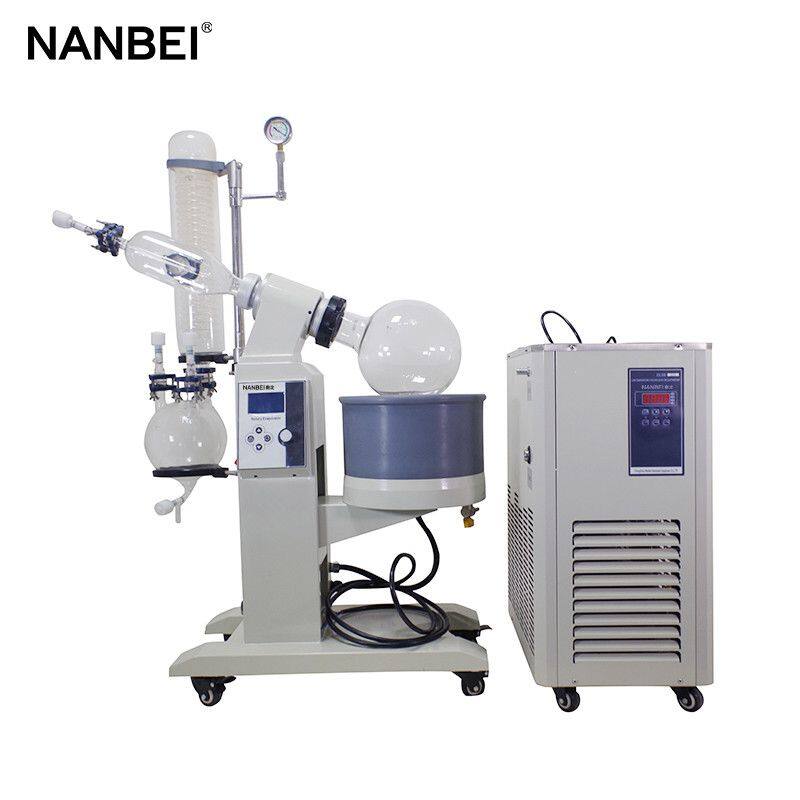

No-return valve control electric 5l rotary evaporator
1.Feature and Description
? Stainless steel and aluminum alloy for bracket.
? Imported fluorine rubber and Teflon two-way combination seal.
? Anti-vibration vacuum gauges show real-time vacuum.
? Upright three-layer serpentine coil condenser.
? Latest integrated hand wheel valve, sealing is good.
? Over-temperature protection function.
? Anti-dry function.
? Sudden power down protection funcation.

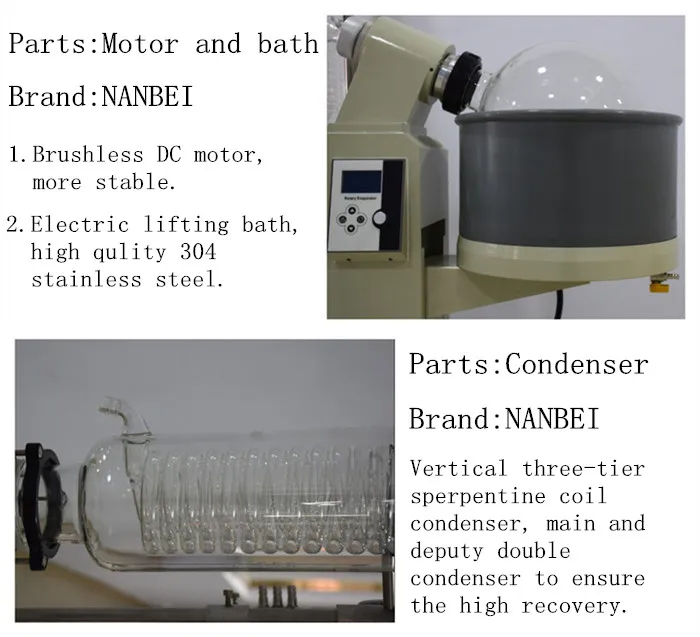

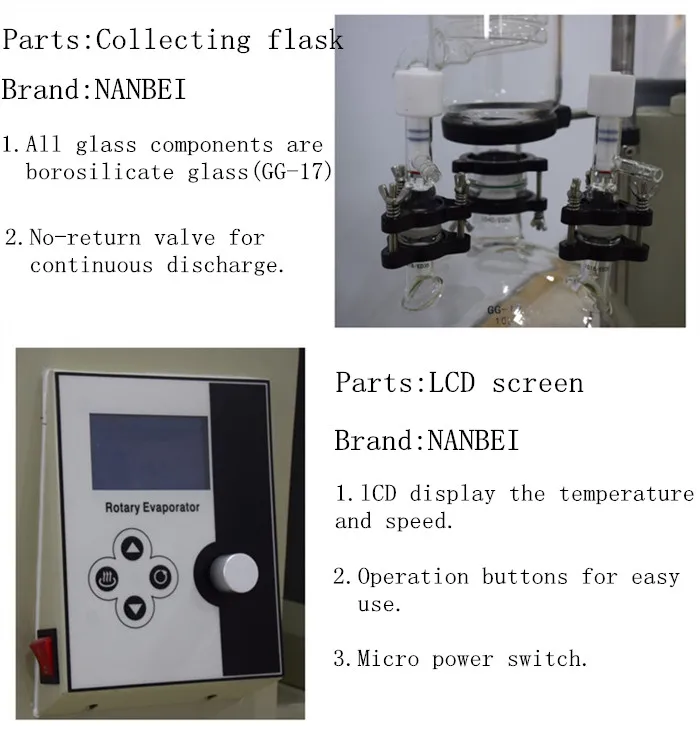

2.Picture for our product
3.Usage and Application
Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration .
4.Technical data for rotary evaporator
| Model | NBRE-2005 |
| Lifting motor power | 40W |
| Heating power | 2.2kw |
| Rotating flask | 5L Flange mouth:Φ50mm |
| collecting flask | 3L |
| Vacuum degree | 0.098Mpa |
| Rotary speed | 0-140rpm/min |
| Heating temp. | 0-400C |
| Temp controlling accuracy | ±1C |
| Glass temp range | -80C to 250C |
| Condenser tube | Vertical double serpentine |
| Bath materials | 304 stainless steel |
| Host speed | Digital frequency stepless speed regulation |
| Didcharge valve | 10mm glass and lean discharge port |
| Bath size/volume | Φ300*170H(mm) |
| Lifting stroke | 0-150mm |
| Voltage | 220V 50Hz (various power supply and plug can be customized) |
| Gross weight | 66kg |
| Packing size | 790*450*750mm(L*W*H) |
5.Other capacity of electric lifting vacuum rotary evaporator

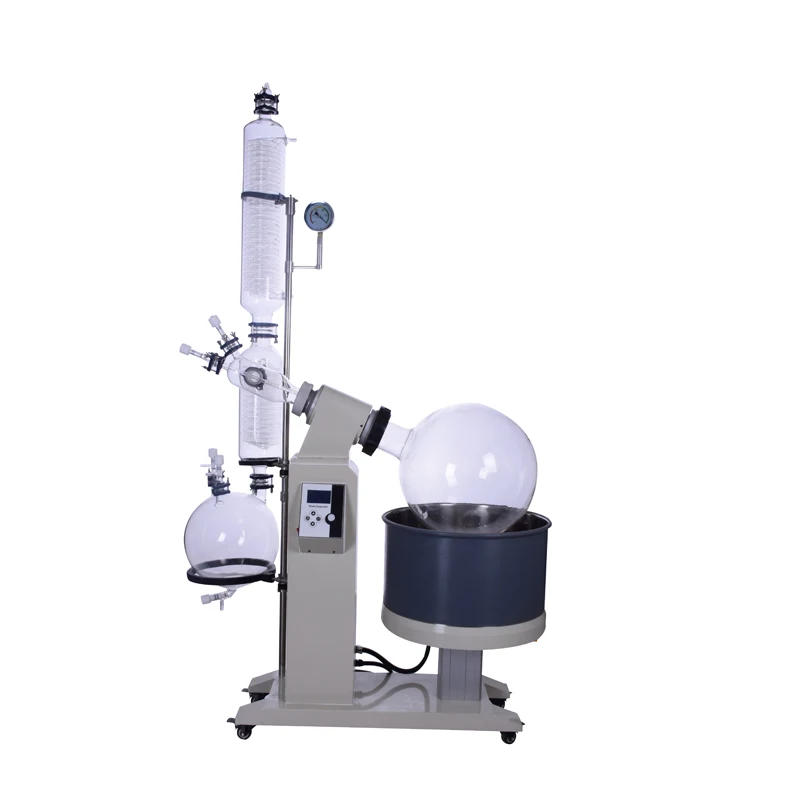

| 20L electric lifting vacuum rotary evaporator | Model | NBRE-2000 |
![]() | Rotating motor power | 60W |
| Lifting motor power | 40W | |
| Heating power | 5kw | |
| Rotating flask | 20L Flange mouth:Φ355mm/Φ95mm | |
| collecting flask | 10L Flange mouth:Φ280mm/Φ60mm | |
| Vacuum degree | 0.098Mpa | |
| Rotary speed | 0-120rpm/min | |
| Heating temp | 0-400C | |
| Glass temp range | -80C to 250C | |
| Condenser sizeFeed valveRelease valve | MainΦ130*680H(mm) DeputyΦ130*410H(mm) | |
| Didcharge valve | 10mm glass and lean discharge port | |
| Bath size/volume | Φ450*250H(mm) about 39L | |
| Lifting stroke | 0-180mm | |
| Voltage (various power supply and plug can be customized) | ||

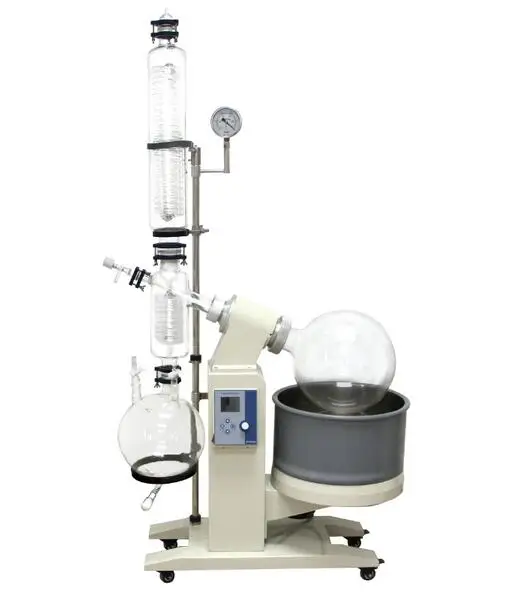

| 10L electric lifting vacuum rotary evaporator | Model | NBRE-1000 |
![]() | Rotating motor power | 60W |
| Lifting motor power | 40W | |
| Heating power | 4.5kw | |
| Rotating flask | 10LFlange mouthΦ280mm/Φ95mm | |
| collecting flask | 5L Flange mouthΦ230mm/Φ50mm | |
| Vacuum degree | 0.098Mpa | |
| Rotary speed | 0-120rpm/min | |
| Heating temp | 0-400C | |
| Glass temp range | -80C to 250C | |
| Condenser size | MainΦ130*640H(mm) DeputyΦ130*410H(mm) | |
| Didcharge valve | 10mm glass and lean discharge port | |
| Bath size/volume | Φ350*220H(mm) about 21L | |
| Lifting stroke | 0-180mm | |
| Voltage(various power supply and plug can be customized) | ||
50L electric lifting vacuum rotary evaporator | Model | NBRE-5000 |
![]() | Rotating motor power | 100W |
| Lifting motor power | 40W | |
| Heating power | 8kw | |
| Rotating flask | 50L | |
| collecting flask | 20L | |
| Vacuum degree | 0.098Mpa | |
| Rotary speed | 0-120rpm/min | |
| Heating temp. | 0-400C | |
| Glass temp range | -80C to 250C | |
| Didcharge valve | 15mm glass and lean discharge port | |
| Bath size/volume | Φ550*320H(mm) | |
| Voltage(various power supply and plug can be customized) | ||

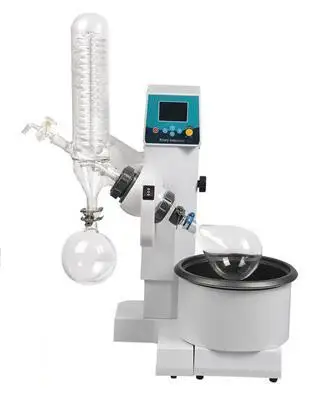

| 2L electric lifting vacuum rotary evaporator | Model | NBRE-2000E |
![]() | Rotating motor power | 30W |
| Heating power | 2kw | |
| Rotating flask | 2L | |
| collecting flask | 0.5L | |
| Vacuum degree | 0.098Mpa | |
| Rotary speed | 0-120rpm/min | |
| Heating temp. | 0-400C | |
| Temp controlling accuracy | ±1C | |
| Voltage(various power supply and plug can be customized) | ||
6. Manual lifting vacuum rotary evaporator

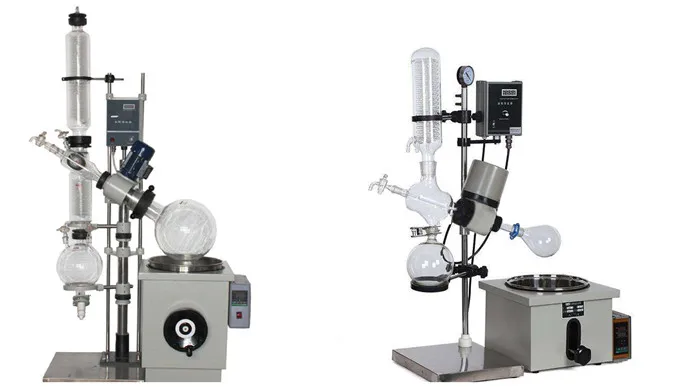

10L 20L 30L 50L manual lifting vacuum rotary evaporator | 1L 2L 3L 5L manual lifting vacuum rotary evaporator |
![]() | |
7. Related Products

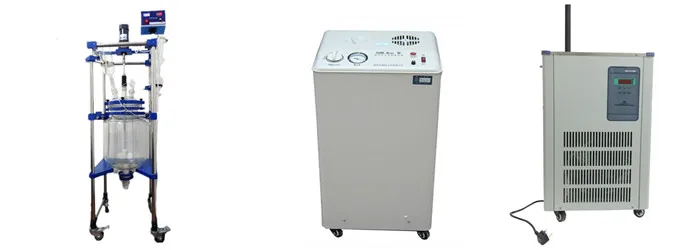

Glass reactor Water circulating pump Chiller
| Q:Are you trading company or manufacturer? A:We are professional manufacturer of rotary evaporator and we have our own factory. |
| Q:What is the main use of rotary evaporator? A:Rotary evaporator is the mainly use for manufacturing and analyzing experiments when they do extraction and concentration. |
| Q:What is the application of rotary evaporator? A:Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units. |
| Q:What is the rotary evaporator consist of? A:Rotary evaporator is consist of condenser, vacuum gauge, collecting flask, rotary flask, water/oil bath, motor and regulator, panel, floor and power wire. |
| Q:What is the necessary machine of rotary evaporator for whole experiment? A:The whole experiment includes rotary evaporator, water circulating pump, chiller, diaphragm pump, high and low temperature pump. |
| Q:What is the delivery time? A:Delivery within 3 working days if we have in stock, or 5-7 working days if the goods are not in stock. |
