Insulation Strain Clamp Manufacturer
US$ 1.2 - 1.5
/ Piece
1000 Pieces(Min. Order)
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | NTS | |
| Model Number | NTSC004 | Usage | Other, POWER LINE FITTINGS | |
| Material | Aluminium | Structure | Other, Suspension Clamp, suspension clamp | |
| Standard or Nonstandard | Standard |
Product Description
Specifications
Name:insulation strain clampMaterial:aluminium alloy
Surface Finishing:HDG/Zinc Plated or your need

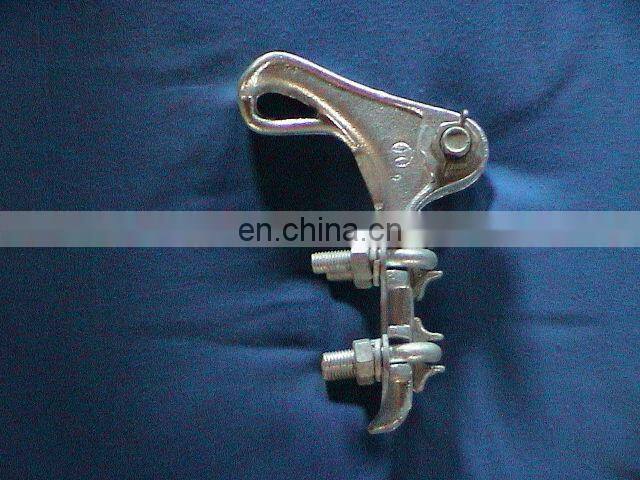

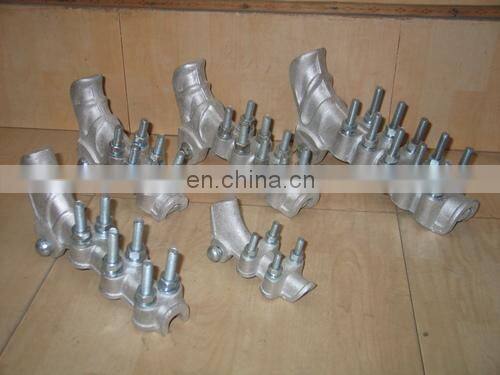

insulation strain clamp u bolted type suitable for AAC &ACSR conductors overall diameter 12.5~18.0mm
with aluminum type .
1.Material : Aluminium alloy or Melleable iron
2. With Three U BOLTS and nuts manufactured of the hot dip galvanized mild steel
3. applicable to 35KV
4. surface : hot dip galvanized
5.The minimun ultimate strength of clamp 40kn

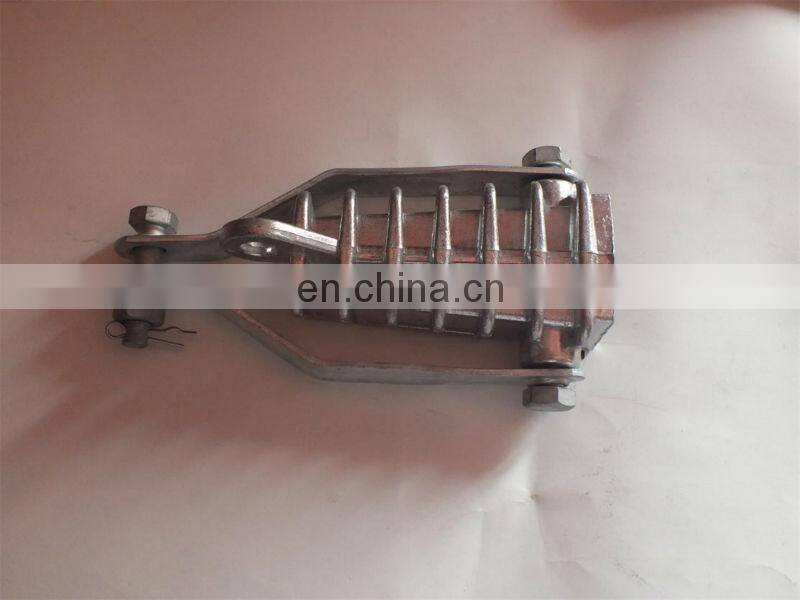

UT Wedge Clamps with CE certificate (Non-adjustable Type)
The guy wire fittings are mainly used to fix guy wire pole towers,including all parts from the top of pole tower to the guy wire on the ground.The safe running of guy wire pole tower mainly depends on guy wire and its fittings.
The technique criterion of guy wire fittings conforms to the relevant state and industrial standards.
Specification Table
| Model | Steel strand outside diameter | Dimensions(mm) | Rated failure load(kN) | Weight(kg) | |||
| C | M | L | L1 | ||||
| NTSC-01 | 6.7~7.8 | 56 | 16 | 290 | 200 | 45 | 1.92 |
| NTSC-02 | 9~11 | 62 | 18 | 290 | 250 | 88 | 2.61 |
| NTSC-03 | 13~14 | 74 | 22 | 290 | 300 | 143 | 4.21 |
| NTSC-04 | 15~16 | 82 | 24 | 340 | 300 | 164 | 7.27 |
| Note: The body and wedge are made of mallable iron or aluminium alloy ,the cotter-pin is made of stainless steel and the other parts are made of steel. All ferrous parts are hot-dip galvanized. | |||||||
Products View
Packing Details
