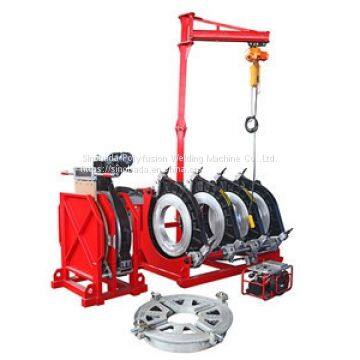

SD-H800 Hydraulic butt fusion welding machine
You May Like
Product Details
| Brand Name | Sinobada | Place of Origin | China |
Product Description
Application and Features:
※Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop.
※Consists of basic frame, hydraulic unit, planing tool, separate heating plate, support for planing tool & heating plate, and optional parts.
※Removable PTFE coated heating plate with high accurate temperature control system.
※Electric planning tool with safety limit switch enables to start it only when it is locked in operation position.
※Made of lightweight and high strength material.
※Low starting pressure and high reliable seal structure.
※Changeable welding position brings more convenience while welding various fittings.
※Separate two-channel timer records times in soaking and cooling phases.
※High-accurate and shockproof pressure meter indicates clearer readings.
※Labor saving and high efficient crane is available to lift planing tool and heating plate .
Optional parts:
※Stub end device for short flange stub
※Data logger.
The main parameters:
Model | SD-H800 | |
Pipe size(mm) | 450,500,560,630,710,800 | |
Heating plate Max. Temp. | 270℃ | |
Temp. deviation in surface(170~250℃) | <±7℃ | |
Pressure adjustable ranges | 0-16Mpa | |
Working voltage | 380V、50Hz | |
Heating plate power | 12.5KW | |
Planing tool Power | 2.2KW | |
Hydraulic unit power | 3KW | |
Crane power | 0.5KW | |
Total power | 18.2KW | |
Weight | 1360Kg | |
Packing | Cases | 5 Plywood Cases |
Volume | 8.39 CBM | |
EN ISO 1200-1,EN 1200-2,EN 1050,60204-1
