Home > Products > PVC film vacuum press machine > Wood cabinet door PVC film vacuum hot membrane press machine with double tables

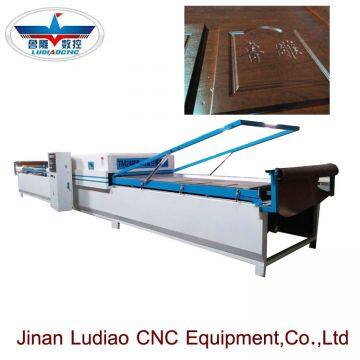

Wood cabinet door PVC film vacuum hot membrane press machine with double tables
US$ 3500 - 6480
/ Set
1 Set(Min. Order)
- Qingdao
- T/T L/C D/P D/A
- 7 days
You May Like
-
wood sanding machine for both falt& curved wood board, wood brush polishing sander machine
-
Marble stone carving CNC router ,1325 CNC engraving cutting machine for granite tombstone
-
Stone marble granite CNC router 9015.marble carving CNC router machine 1325 for granite decoration
-
Affordable price MDF carving CNC router for wood crafts& sign making ,CNC router 1212 price for wood logo making
-
Three spindle process CNC engraving cutting router 1325 for wood kitchen cabinet door wardrobe making
-
Automatic tool change four spindle process CNC router 4*8ft for wood kitchen cabinet door making
Product Details
| Brand Name | LUDIAO | Place of Origin | China | |
| Model Number | TM2480B2 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
Wood cabinet door PVC film vacuum hot membrane press machine with double tables
Applicable covering material: PVC film
Sphere of application:
it is intended for laminate doors, kitchen and furniture facades, different furniture units with PVC films and veneer, with the help of heat and vacuum technique system. As result you will receive product with long life use and the same time with elegant and inclusive surface.It is applicable to cover plate type furniture (sound box, cabinet, door), decorative dado and all kinds of baroque decorative surfaces with PVC films and wood skins and hot stamping foils.
Technical parameters:
Specification
TM2480B1,automatic machine with one table
| External dimensions | 5,800 x 1,850 x 1,350mm |
| Worktable dimensions | 2,550 x 1,150 (1,300) x 50mm |
| Max. processing height | 80mm |
| PVC thickness | 0.1-0.35mm |
| Max vacuum press | -0.1Mpa |
| Total power | 20kW |
| Actual power | 5kW |
| Total weight | 2,000kg |
TM2480B2,automatic machine with two tables
| External dimensions | 9,000 x 1,800 x 1,300mm |
| Worktable dimensions | 2,550 x 1,150 (1,300) x 50mm |
| Max. processing height | 80mm |
| PVC thickness | 0.1-0.45mm |
| Max vacuum press | -0.1Mpa |
| Total power | 25kW |
| Actual power | 5kW |
| Total weight | 2,500kg |
PVC pasting sample
