1000907AKIT2 Flexible Robots Bearings 35.8x48.2x8mm Thin Section Bearing Luoyang

Harmonic drive bearings

Flexible Bearings

Industrial robots bearings

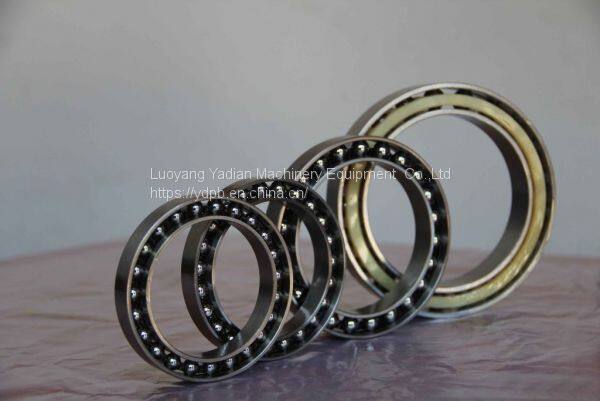

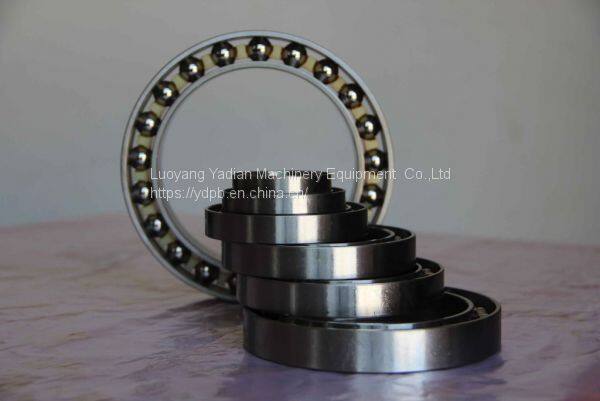

Robot bearing/harmonic drive bearing is a special kind which easily deforms in a reversible way. It has a very thin outer ring which varies from round shape to oval interatively during its working time. easily double sealed bearing designed primarily for application of radial load—deep ball grooves also permit application of thrust load in either direction, often used in conjunction with another bearing.

Other Dimension

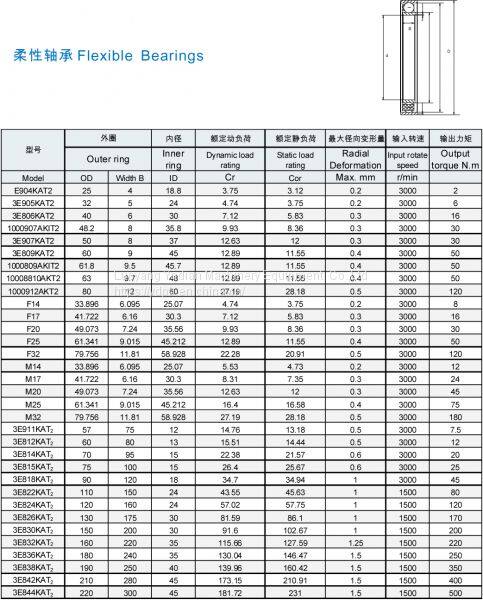

Industrial Robots Use Flexible Bearings Regular models (Dimension- dx D x H mm):

14 Series  Dimension dxDXH  25.07x33.896x6.095/6.35mm

17 Series  Dimension dxDXH  30.3x41.722x 6.16/6.68mm

20 series  Dimension dxDXH  35.56x49.073x7.24/8.13mm

32 series  Dimension dxDXH   58.928x79.756x11.81/8.64mm

_3E904KAT2 Dimension dx D x H  18.8x25x4mm

_3E905KAT2 Dimension dx D x H  24x32x5mm

_3E806KAT2 Dimension dx D x H  30x40x6mm

_3E907KAT2 Dimension dx D x H 37x50x8mm

_3E809KAT2 Dimension dx D x H 45x60x9mm

_3E911KAT2 Dimension dx D x H 57x75x12mm

_3E812KAT2 Dimension dx D x H 60x80x13mm

_3E814KAT2 Dimension dx D x H 70x95x15mm

_3E815KAT2 Dimension dx D x H 75x100x15mm

_3E818KAT2 Dimension dx D x H 90x120x18mm

_3E822KAT2 Dimension dx D x H 110x150x24mm

_3E824KAT2 Dimension dx D x H 120x160x24mm

_3E826KAT2 Dimension dx D x H 130x175x30mm

_3E830KAT2 Dimension dx D x H 150x200x30mm

_3E832KAT2 Dimension dx D x H 160x220x35mm

_3E836KAT2Dimension dx D x H 180x240x35mm

_3E838KAT2Dimension dx D x H 190x250x40mm

_3E842KAT2Dimension dx D x H 210x280x45mm

_3E844KAT2Dimension dx D x H 220x300x45mm

Payment Terms:

Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC,  all can be negotiable.

Many other precision bearings series available

1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
