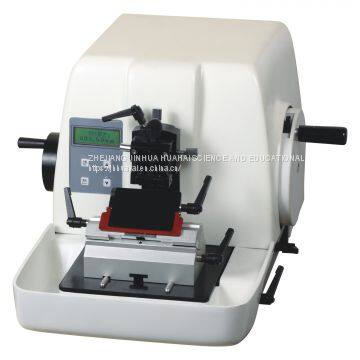

Model HHQ-3658 Medical Semi-Automatic Rotary Microtome

It is our latest model that integrates the advantages of precision, stability and simplification which manual microtome entails, also have the specimen retraction counted by stepping motor and spindle accurate. It is one of best model for histology and pathology preparation.

Main technical performance：

u  Stepping motor sampling system.

u  Terminal alarm system.

u  The knife seat has a hand-guard frame.

u  Hand wheel has brake function.

u  The cutter seat has the function of adjusting angle.

u  Magnetic waste slot enables easy removal for cleaning.

u  Electronic touch-control system with Powerful functions and convenient operation

u  Control and display by LCD touch-screen.

u  Enable optional languages.

u  Small hand wheel can arbitrarily adjust.

u  Specimen retraction function protects specimens from blade scratching and ensures sections ’integrality.

u  Automatic voltage compatibility ensures to match with global voltage standards with supported range of voltage from 100V to 240V.

u  Mechanical drive system with perfect workmanship enables durable service.

u  Guide rails and retainer in mechanical transmission system was made in German, which are so highly precise that enables to slide with even no gap, thus results in precision and longer equipment life and free of lubrication, maintenance and noise, too.

u  Precise, comfort, and safe slicing experience.

u  Specimen positioning: horizontally 8°, vertically 8°, cassette clamp and C clamp are optional.

u  The blade clamp can be moved horizontally to avoid danger from unintended touch on blade. A third of the blade can do the entire slicing, which makes the blade’s life time three times longer.

Technical specification:

u  Section thickness range: 0-100（μm）

u  Trim thickness range：unlimited

u  Minimum value of section thickness: 0.25μm

u  Section thickness setting：

          0-1（μm） increment  0.25μm

                 1-5（μm）increment  0.5μm

                 5-10（μm） increment  1μm

                 10-20（μm） increment  2μm

           20-100（μm）increment  5μm

u  Section precision tolerance：±10%

u  Specimen retraction: 20μm

u  Specimen horizontal feeding：15mm

u  Stroke length：70mm

u  Lateral knife holder

u  Maximum section size:35×40（mm）

u  Electric supply：AC220V/50Hz

u  power：80VA

u  unit dimension：530×460×310（mm）

u  unit weight：35kg

Functions :

u    Tumor section， lumber section,  cytological section,  frozen section

Applications：

u  Its products have been applied to hospitals, universities, research organizations and laboratories involving multiple fields such as agriculture and forestry, health care, disease control and prevention, animal husbandry, and veterinary medicine.
