Home > Products > 4 Axis ATC CNC ROUTER > ELE1325 Linear Atc Cnc Router 4 Axis can Rotated 180 Degree

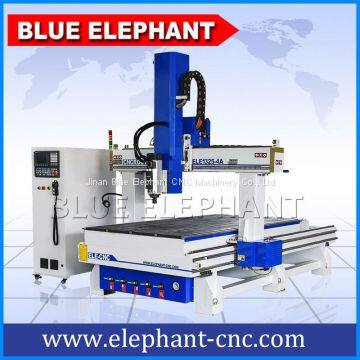

ELE1325 Linear Atc Cnc Router 4 Axis can Rotated 180 Degree
- 600 Set / Sets per Month
- Negotiation
- T/T L/C D/P D/A Cash
- 15 days
You May Like
-
ELE1330 4 Axis Atc Cnc Router Spindle Can Rotated ±90 Degree
-
ELE6090 Advertising Cnc Router with NK105 Controller
-
ELE1224 5 Axis Mould Engraving Cnc Router
-
ELE1530 Cnc Stone Engraving Router Machine
-
ELE2030 Double Separate Heads Stone Cutting and Carving Machine
-
ELE1324-4 Cnc Router 4 Axis for Stone and Wood
Product Details
| Brand Name | ELE | Place of Origin | China | |
| Model Number | ELE 1325 | Certification | CE SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 YEAR | |
| Weight | ACCORDINGLY | Dimension(L*W*H) | 1300x2500x500mm | |
| Voltage | 380v/3ph/50HZ | Condition | New | |
| Power(W) | ACCORDINGLY | CNC or Not | CNC |
Product Description
Advantages:
Heavy duty frame and gantry, 8-10mm thickness.
Z axis is 500mm.
Original Italy HSD 9KW, world top brand, it can rotate 180 degree.
Taiwan Syntec control system with computer panel.
Parameters:
| Description | Parameter |
| X,Y,Z Working Area | 1300x2500x500mm |
| Table Size | 1300×2500mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Table Surface | Vacuum and T-slot working table |
| Frame | New Type Thicker and Bigger Heavy Duty Welded Frame and Gantry |
| X, Y Structure | Rack and Pinion Drive, #25 Taiwan Hiwin Rail Linear Bearings |
| Z Structure | #25 Taiwan Hiwin Rail Linear Bearings and TBI Ball Screw |
| Spindle Power | 9kw Italy HSD ATC air cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | 850W Japan YASKAWA servo motors and drivers |
| Inverter | 11kw Taiwan DELTA inverter |
| Working Voltage | 380v, 3phase, 60HZ (Option: AC220V/50/60Hz,3PH) |
| Command Language | G Code |
| Operating System | Taiwan SYNTEC 4 axis control System |
| Computer Interface | USB |
| Reducer | Japan shimpo reducer |
| Vacuum pump | 5.5kw water circlulation vacuum pump |
| Collet | ISO30 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | UcancameV9 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 – 45 Centigrade |
| Relative Humidity | 30% – 75% |
| Lubrication system | Automatic lubrication system |
| Tool sensor | Automatic tool sensor calibration |
| Rotary device | The rotary device can move for optional,
diameter: 200mm, length: 2000mm |
PS:All the working area and specifications can be customized according to your requests.
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
