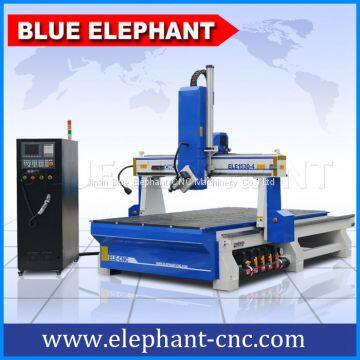

ELE1530-4 5x10ft Cnc Wooden Machine
- 600 Set / Sets per Month
- Negotiation
- T/T L/C D/P D/A Cash
- 15 days
You May Like
-
ELE1325 Linear Atc Cnc Router 4 Axis can Rotated 180 Degree
-
ELE1330 4 Axis Atc Cnc Router Spindle Can Rotated ±90 Degree
-
ELE6090 Advertising Cnc Router with NK105 Controller
-
ELE1224 5 Axis Mould Engraving Cnc Router
-
ELE1530 Cnc Stone Engraving Router Machine
-
ELE2030 Double Separate Heads Stone Cutting and Carving Machine
Product Details
Brand Name | ELE | Place of Origin | China | |
Model Number | ELE 1530 | Certification | CE SGS | |
After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 YEAR | |
Weight | ACCORDINGLY | Dimension(L*W*H) | 1500x3000x400mm | |
Voltage | 380v/3ph/50HZ | Condition | New | |
Power(W) | ACCORDINGLY | CNC or Not | CNC |
Product Description
Advantages:
Welded structure by thick profiled steel,Assembled with precise parts.
Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down power and also enables you to clamp the workpiece in place.
Imported SYNTEC high performance control system, separated keyboard control, color LCD display.
Furniture: wooden doors, cabinets, computer tables, sewing machine, musical instruments
Plate processing: insulation, plastic and chemical, the PCB, move the car body, bowing, track, stars anti-special board, epoxy, resin, ABS, PP, PE, and other carbon mixture
Decoration industry: acrylic, PVC, MDF, artificial stone, plexi-glass, plastic, and copper and aluminum and other soft metal plate engraving and milling cutting.
Parameters:
Description | Parameter |
X,Y,Z Working Area | 1500x3000x400mm*±100° |
Table Size | 1500*3500mm |
Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
Frame | Big Steel Tube Structure |
X, Y Structure | Helical rack gear, Taiwan HIWIN Linear guide |
Z Structure | Imported Taiwan TBI Ball Screw ,Taiwan HIWIN Linear Guide |
Max. Rapid Travel Rate | 40000mm/min |
Max. Working Speed | 30000mm/min |
Spindle Power | Italy HSD Spindle 4.5kw( Italy ATC spindle for option) |
Spindle Speed | 0-18000RPM |
Drive Motors | Japan 850 W YASKAWA Servo Motor |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
Command Language | G Code |
Operating System | Taiwan SYNTEC Control System (model: EZ4M) |
Computer Interface | USB |
Flash Memory | 512M |
Collet | ER25 |
X,Y Resolution | <0.01mm |
Software Compatibility | UG , Power mill |
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
