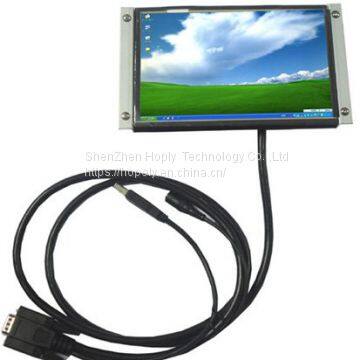

7 Inch Open Frame SKD HL-708B Monitor With Touch Screen For Industrial Portable PC

System parameters
LCD Panel                         Innolux
Working Voltage               DC 10.8-16V DC
Working Current               0.7A(MAX:1A)
Working Temperature     -20~70  degrees Celsius
Storage Temperature      -30~80  degrees Celsius
Input configuration        Two video input ( VGA; AV1; AV2 )
Aspect Ratio                   16:9  7 inches (diagonal)
Resolutions                    800*480
Adjust Angle                   Verticale and Horizontal
Audio system                 BG/DK/I; M/N ; L
Chromatic System         PAL/NTSC Auto Switch
LCD Brightness             350 cd/m2
View Angle                      170/160deg

Product functions
7" Wide Digital TFT-LCD Panel
Automatic/Maual Selectable video color system mode(PAL/NTSC)
With automatic adjustment can optimize picture quality. As car monitor, car TV, industrial, control and POS terminals.
Full Function Wireless Remote Controller

Multi-language OSD menu:Chinese,English,Russian,French,Spanish and Deutsch

Built-in Speaker
VGA Port can match with GPS and Car PC(optional),Operated System is WIN9X,2000,ME,CE/UNIX
The Highest Resolution is to 1024×768
Touchscreen function

Accessories
1pcs LCD Monitor
1pcs Remote Controller
1pcs Stand Shelf
1pcs AV Cable
1pcs VGA Cable
1pcs Instruction Manual
1pcs AC-DC Power
1pcs CD Driver
1pcs Touch Pen (optional)
Some Screw for Fixing the Shelf
Packing

               Measurement(W*L*H)   N.W(kg)    G.W(kg)     Qty(pcs)       Container Load
Unit        Size(mm):200*138*30     1.5
Gift box  Size(mm):300*204*90                          1.8                            20':  about 4300pcs
Carton   Size(mm):465*315*220                        10              5            40':  about 9300pcs
Lead Time:
Sample Availble Date        within 2 days
Mass Production Date        within 15 days
After-sales Service:
One year free guarantee to keep in good repair
0.5% of key components for after-sale service
