Home > Products > molding machine > DL - Z145 - II Vertical Manual Jolt Squeeze Sand Molding Machine

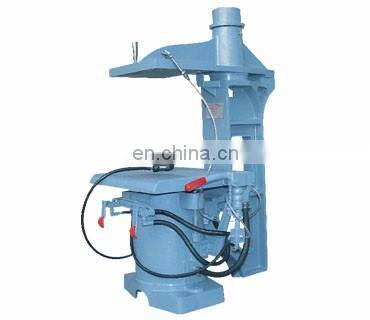

DL - Z145 - II Vertical Manual Jolt Squeeze Sand Molding Machine

FOB Price

US$ 1,000 - 8,000 / Set

1 Set(Min. Order)

Port XIAMEN
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Fujian, China
Brand Name	DELIN Die Casting Machinery	Model Number	DL-Z145-II
Voltage	380V 50HZ	Power(W)	5.5KW
Dimension(LWH)	8507001380mm	Weight	280kg
Certification	CE	Warranty	1years
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Vertical molding machine Features

Its main function includes sand feeding and compacting, which is to feed the molding sand and compact them in the sand box with the different compacting methods,in order to make the sand mould having a certain strength during transportation and pouring.

1. The machine is drived by compressed air, can get uniform hardeness castings.
2. Adopting this moulding machine, can get workpieces with smooth surface such as artware lighting ware, water warm casts and so on, and can control weight of parts easily.

3. Big inclination angle of mold cavity,can meet different products' casting techmique.
4. Adjustable rotating speed of mold cavity,improve mold exhausting.
5. PLC control,full hydraulic drive,high dependability.
6. Urgent stop button in set on the machine body,it is for easy.
7. It is convenient installing and regulating.

Main Specifications And Technical Parameters

Contents	Parameters
^Dimension	^{8507001380mm}
^{The biggest size of core boxes}	^{300400150/100 mm}
^{Compaction stroke}	^110mm
^{The size of table}	^470*540mm
^{Jolting power}	^380kg
^{Compaction power}	^3000kg
^{Weight of machine}	^280kg
^{Pressure of air-compressed}	^5.6Mpa
^{The largest area of core boxes(pressure:0.25Mpa)}	2700 cm²
^{The largest area of care boxes} ^{(pressure:0.5Mpa)}	600 cm²
^{The need air of a box}	0.13 m³

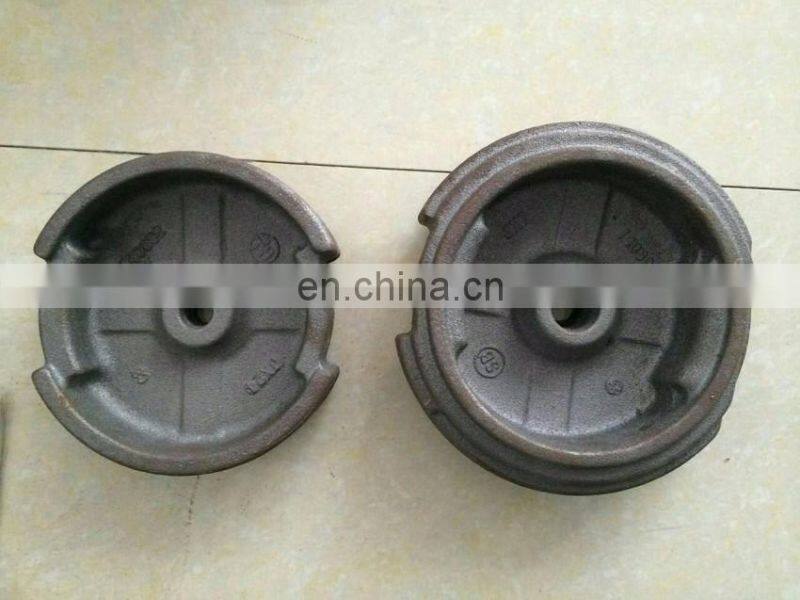

Smaple Show

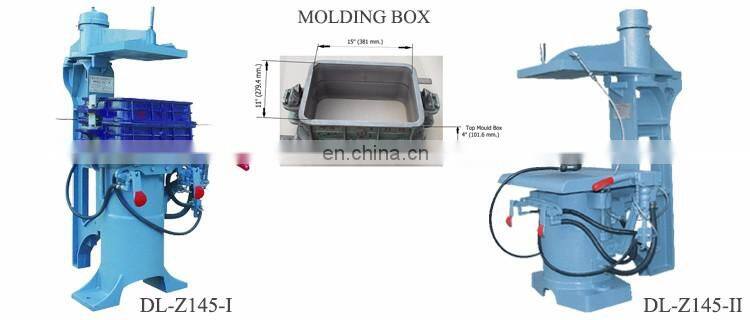

Jolt squeeze molding machines are suitable for smaller foundries .requiring flexibility, good quality production of short run castings.We are continously developing and has further upgraded its molding machine. The following models are our latest jolt squeeze molding machines,we can make different moulds, such as motor outter shell, sewing machine parts, automobile parts,casting small & medium size of workpieces etc.

Main Catelogries

Our Company

our service
Before payment	1. Free contact for the most suitable machine. 2. Free professional design for each customer especially.
After sale service	1. 24 hours technical support by phone, email, skype ,whatapp or wachat. 2. 1years warranty period. 3. Our senior engineer is available to travel aboard, help the installation, maintenance and training staff. 4. By offering this support, we make sure the customer start the business smoothly, to realize win-win cooperation.

Packing & Delivery

_{Packaging & Delivery}
_Size	according to machine size
_Weight	about 1800kg
_{Packaging Details}	1, Before the shipment, we will spray anti-rust oil on the machine's surface . 2, Then use the plastic film packaging to prevent moisture and rust. 3, Finally, put the machine in wooden cases, use solid seaworthy wood box package with steel belt, it will be save space as much as possible for container loading.

FAQ

Q1: Can i have your quotation?
A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you the suitable machine.
Q 2: How to operate and maintain the machine?
A : First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service.
Q 3: Where is your factory located ? How can I visit it ?
A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.
Q 4 :What’s dimension of your workpiece ?
A : In order to configure suitable size machine for you. we should get your info. We can professional design as your requirement.
Q 5: Can you guarantee you quality?
A : Of course. We are the manufacture factory ,more important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
