Spindle Horizontal CNC Drilling Milling and Tapping Machine

Specifications

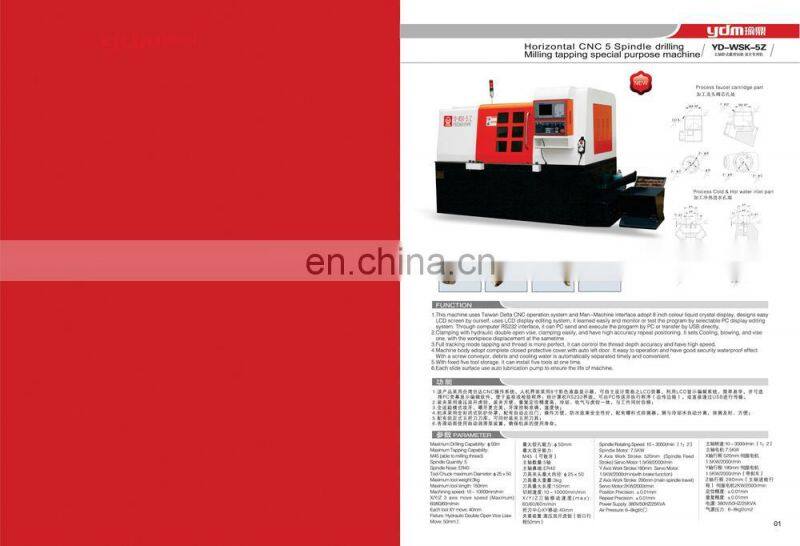

1.YD-WSK-5Z 5 Spindle Horizontal CNC Drilling Milling and Tapping Machine Function

1. This machine uses Taiwan Delta CNC operation system and Man-machine interface adopt 8 inch color liquid crystal display, designs easy LCD screen by ourselves, uses LCD display editing system, it learned easily and monitor or test the program by selectable PC display editing system. Through computer RS232 interface, it can PC send and execute the program by PC or transfer by USB directly.

2. clamping with hydraulic double open vise, clamping easily, and have high accuracy repeat positioning. It sets cooling, blowing, and vise one, with the work piece displacement at the same time.

3. Full tracking mode tapping and thread is more perfect, it can control the thread depth accuracy and have high speed.

4. Machine body adopt complete closed protective cover, with auto left door, It easy to operation and have good security waterproof effect, With a screw conveyor, debris and cooling water is automatically separated timely and convenient.

5. With fixed five tool storage, it can install five tools at one time.

6. Each slide surface use auto lubrication pump to ensure the life of machine.

Spindle Horizontal CNC Drilling Milling and Tapping Machine parts :

 Vertical machining center, a fixture in continuous complete milling, drilling, expanding, reaming, boring, tapping and two-dimensional, three-dimensional surface, slope precision machining, aviation parts, auto parts, sanitary ware and other high-precision parts of the ideal processing equipment.

Spindle Horizontal CNC Drilling Milling and Tapping Machine parts :

 (A ) high-precision high-rigidity structure design

 1 the main structural parts are made of high quality FC-30 cast iron, structural stability, permanent ensurequality.

 2. spindle power head to rib reinforced structure, the spindle power head and the column contact length ratio appropriate to provide solid support spindle .

 (B ) high rigidity , high speed feeding system

 1.  three-axis motor and direct drive precision ball screw adjustment , enhanced rigidity and improved accuracy.

 2.  Z -axis brake motor system in the fast displacement can maintain a high balance and agility to ensure accuracy.

 3.  three-axis linear slide, high rigidity , low noise, low friction characteristics, do rapid displacement and obtaining optimum cycle accuracy.

4. rapid displacement X / Y / Z axis 48m/min.

(C) Reliable ATC

(D )  man-machine interface

 touch buttons , round , and text display , simple operation.

( E ) high-speed high-precision linear slide

1.  linear slide zero gap , arc cutting , bevel cutting , surface texture uniform .

2. the choice of high-speed operation , and significantly reduces the required driver horsepower machine .

3. linear guides to rolling instead of sliding , friction loss, responsive, high positioning accuracy.

4. which can withstand the load of vertical and horizontal directions , and the contact surface of the track is still under load multiple points of contact , cutting rigidity does not decrease.

5. easy to assemble , with interchangeable , simple structure and lubrication .

6. high rigidity can provide smooth torque coupling link , to improve the stability of the servo positioning .

factory show:

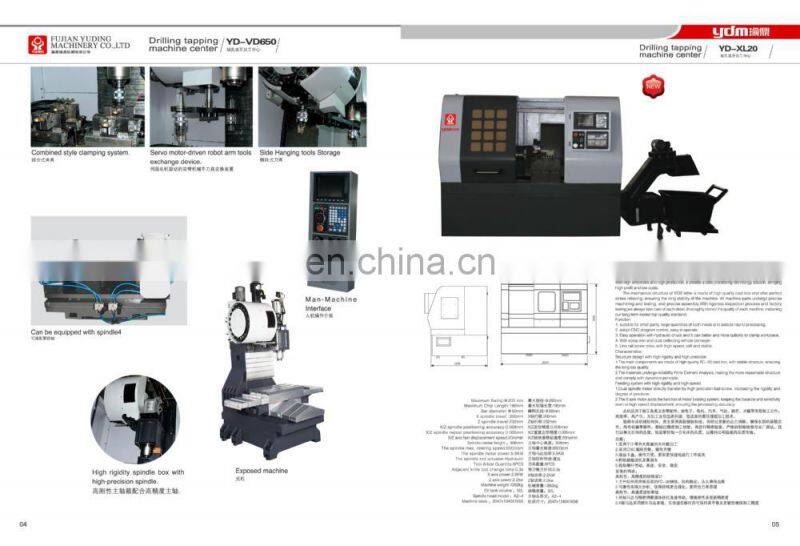

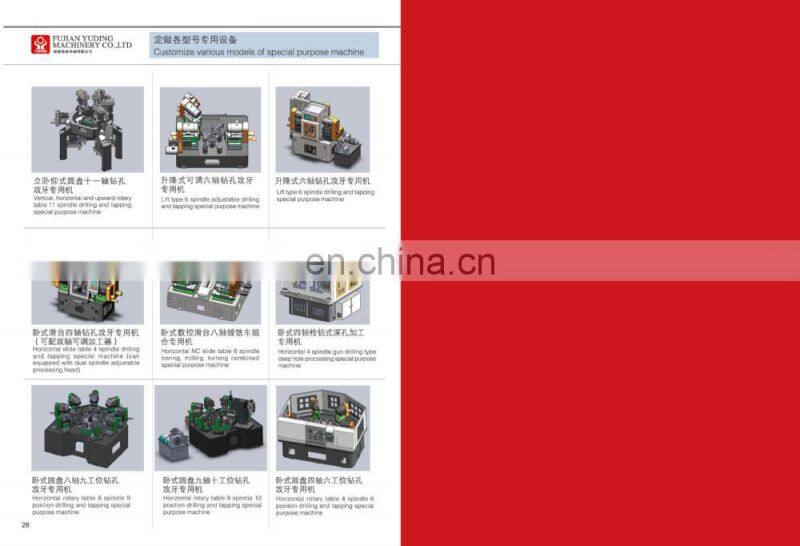

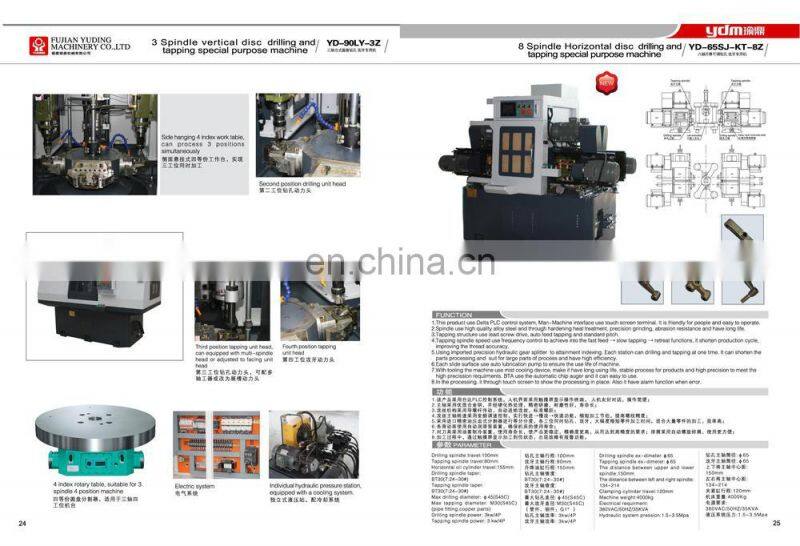

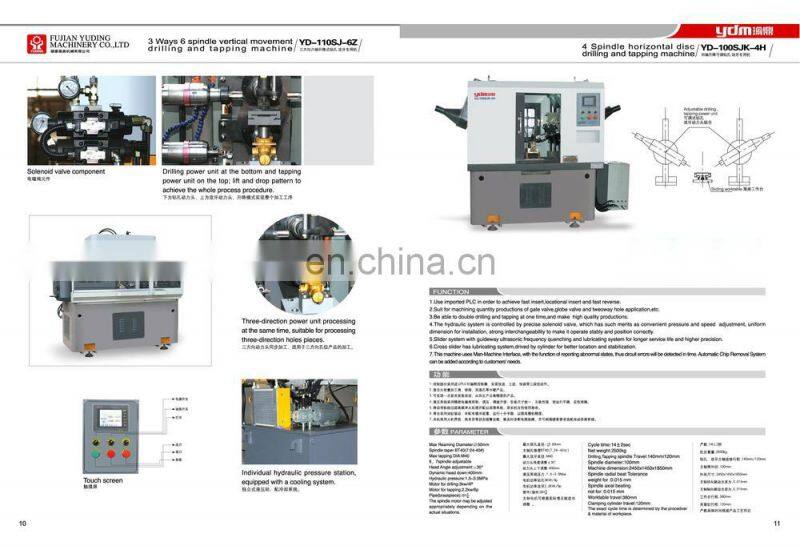

product show:

our service:

1.Reply your enquiry in 24 working hours.

2.Experienced staffs answer all your qyestions in professional and fluent english.

3.Customized design is availlable.

4.Exdusive and unique solution can be provided to our customer,by your our well-trained and professional engineers and staffs.

5.Special discount and protection of sales area provided to your distributor.

6.Do the best colorful metal cheep small wholesale in china.
