Hight Quality Producing Cnc Gear Hobbing Machine Line and Supplier

Specifications

Hight quality producing cnc gear hobbing machine line and supplier   :

Introduction cnc gear hobbing machine :

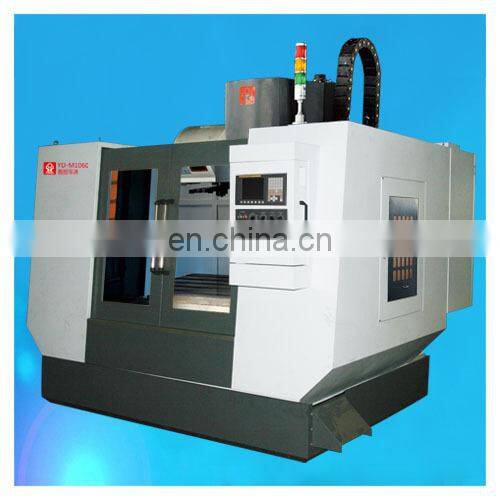

     Vertical machining center, a fixture in continuous complete milling, drilling, expanding, reaming, boring, tapping and two-dimensional, three-dimensional surface, slope precision machining, aviation parts, auto parts, sanitary ware and other high-precision parts of the ideal processing equipment.

cnc gear hobbing machine charactric:

(A ) high-precision high-rigidity structure design

1 the main structural parts are made of high quality FC-30 cast iron, structural stability, permanent ensurequality.

2. spindle power head to rib reinforced structure, the spindle power head and the column contact length ratio appropriate to provide solid support spindle .

 (B ) high rigidity , high speed feeding system

 1.  three-axis motor and direct drive precision ball screw adjustment , enhanced rigidity and improved accuracy.

 2.  Z -axis brake motor system in the fast displacement can maintain a high balance and agility to ensure accuracy.

 3.  three-axis linear slide, high rigidity , low noise, low friction characteristics, do rapid displacement and obtaining optimum cycle accuracy.

 4. rapid displacement X / Y / Z axis 48m/min.

 (C) Reliable ATC

 (D )  man-machine interface

 touch buttons , round , and text display , simple operation.

 ( E ) high-speed high-precision linear slide

 1.  linear slide zero gap , arc cutting , bevel cutting , surface texture uniform .

  2. the choice of high-speed operation , and significantly reduces the required driver horsepower machine .

 3. linear guides to rolling instead of sliding , friction loss, responsive, high positioning accuracy.

 4. which can withstand the load of vertical and horizontal directions , and the contact surface of the track is still under load multiple points of contact , cutting rigidity does not decrease.

 5. easy to assemble , with interchangeable , simple structure and lubrication .

 6. high rigidity can provide smooth torque coupling link , to improve the stability of the servo positioning .

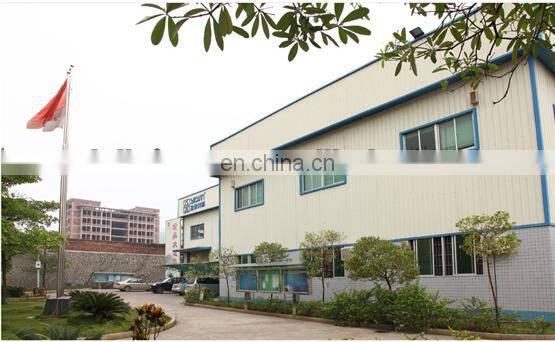

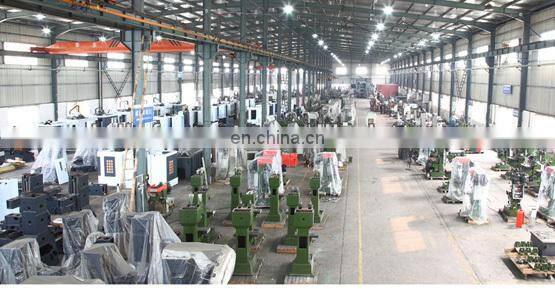

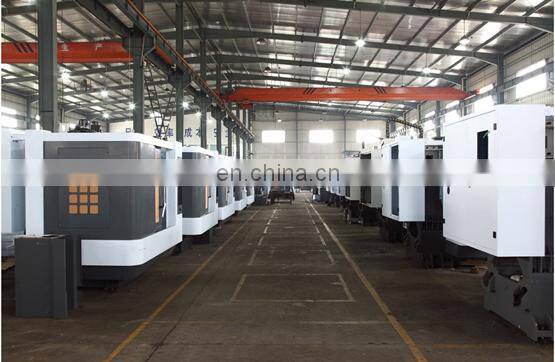

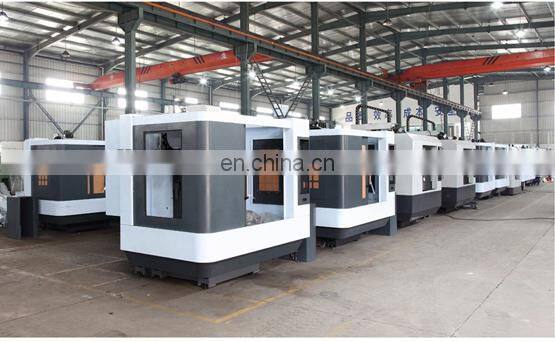

 Factory showcase:

Being perfect is a dream.

Based on the principle of perfection. To give best services to all customers.
